Weatherhead® 10406N-606 10406N-606

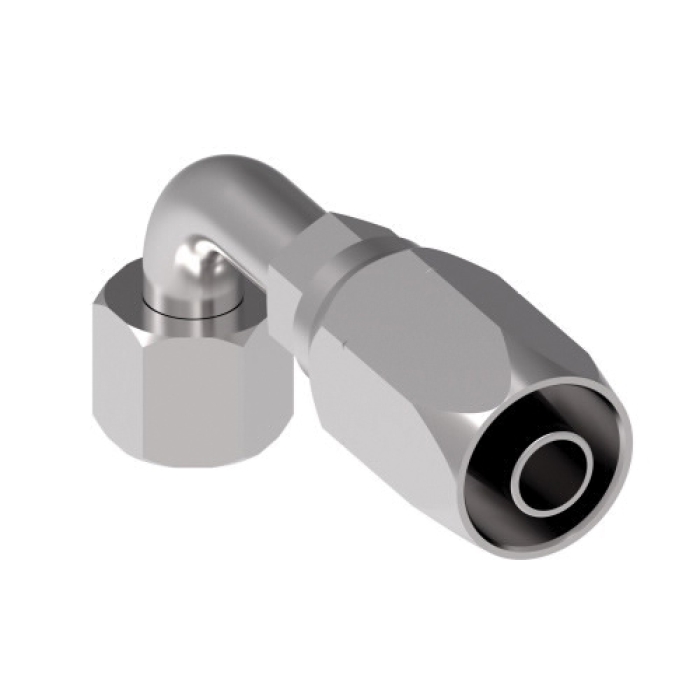

Weatherhead® 104 N Zinc-Plated Carbon Steel Female 37 deg JIC Swivel 100R1 Field Attachable Reusable Hose End

Weatherhead® 104 N 100R1 Field Attachable Reusable Hose End, Hose X 37 deg JIC Swivel, Zinc-Plated, Carbon Steel

  • ARGPN: 10406N-606 loading
    • Connection Size 1:
    • Connection Size 2:
  • Add to cart
    Add To Favorites
    • pin-int

    Weatherhead® 100R1 Field Attachable Reusable Hose End, Series: 104 N, Connection Type 1: Hose, Gender 1: Female, Connection Size 1: 3/8 in, Hose Dash Size: 06, Connection Type 2: 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 9/16-18, Hex Size: 7/8 x 11/16 in, 4000 psi, Cut-Off Factor: 1.63 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: H104 Series Hoses, Dimensions: 2.84 in L x 0.88 in W x 0.88 in H, Dimension Standards: SAE 100R1

    Connection Size 1      :      3/8 in
    Connection Size 2      :      3/8 in
    Connection Type      :      Hose~JIC Female Swivel
    Connection Type 1      :      Hose
    Connection Type 2      :      37 deg JIC Swivel
    Cut-Off Factor      :      1.63 in
    Dimension Standards      :      SAE 100R1
    Dimensions      :      2.79 in L
    Finish      :      Zinc-Plated
    Fitting Type      :      Hose End
    For Use With      :      H104 Series Hoses
    Gender 2      :      Female
    Hex Size      :      7/8 x 11/16 in
    Hose Dash Size      :      06
    Material      :      Steel
    Material Construction      :      Carbon Steel
    Nominal Size      :      3/8 in
    Series      :      104 N
    Shape      :      Straight
    Thread Size 2      :      9/16-18
    • Good selection of hose ends
    • Non-mandrel assembly

    Applications: Medium pressure hydraulic applications such as construction, farm implement and industrial equipment

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_06904D-604_CAT.pdf
