Weatherhead® 24704N-604 24704N-604

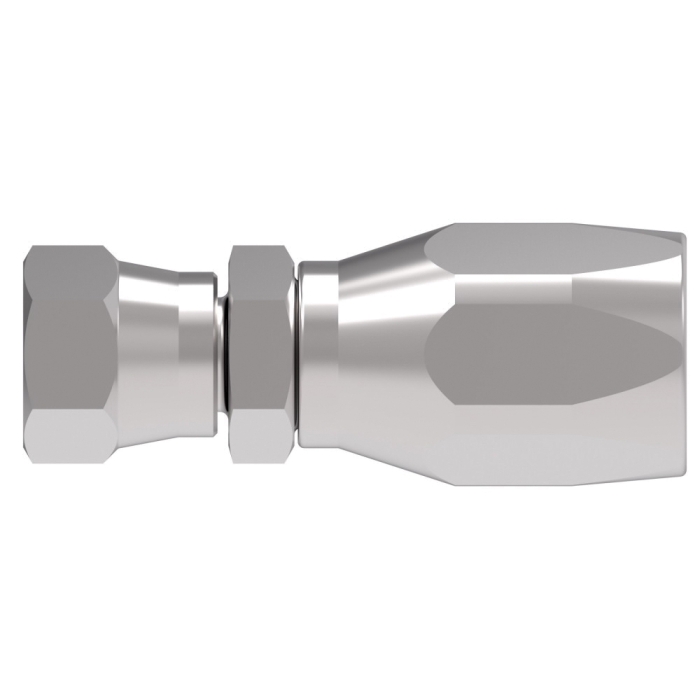

Weatherhead® 247 N Zinc Clear Trivalent Chromate Carbon Steel Female SAE 37 deg JIC Flare Swivel Field Attachable Reusable Straight Hose End

Weatherhead® 247 N Field Attachable Reusable Straight Hose End, Hose X SAE 37 deg JIC Flare Swivel, Zinc Clear Trivalent Chromate, Carbon Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Weatherhead® Field Attachable Reusable Straight Hose End, Series: 247 N, Connection Type 1: Hose, Connection Size 1: 3/16 in, Hose Dash Size: 04, Connection Type 2: SAE 37 deg JIC Flare Swivel, Gender 2: Female, Connection Size 2: 1/4 in, Nominal Size: 1/4 in, Thread Size 2: 7/16-20, Hex Size: 5/8 x 9/16 in, Cut-Off Factor: 1.31 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: H059, H069, H166, H169, H229, H366, and H569 Hoses, Dimensions: 2.01 in L x 0.5625 in W x 0.5625 in H, Dimension Standards: SAE 100R5

    Connection Size 1      :      3/16 in
    Connection Size 2      :      1/4 in
    Connection Type      :      Hose~JIC Female Swivel
    Connection Type 1      :      Hose
    Connection Type 2      :      SAE 37 deg JIC Flare Swivel
    Cut-Off Factor      :      1.31 in
    Dimension Standards      :      SAE 100R5
    Dimensions      :      2.01 in L
    Finish      :      Zinc Clear Trivalent Chromate
    Fitting Type      :      Straight Hose End
    For Use With      :      H059, H069, H166, H169, H229, H366, and H569 Hoses
    Gender 2      :      Female
    Hex Size      :      5/8 x 9/16 in
    Hose Dash Size      :      03
    Material      :      Steel
    Material Construction      :      Carbon Steel
    Nominal Size      :      1/4 in
    Series      :      247 N
    Shape      :      Straight
    Thread Size 2      :      7/16-20
    • Very popular in heavy-duty truck markets
    • Good selection of hose ends
    • Compatible with a wide variety of hose types allowing for a diverse number of applications
    • Non-mandrel assembly

    Applications: For a variety of applications including truck, industrial and small engine
