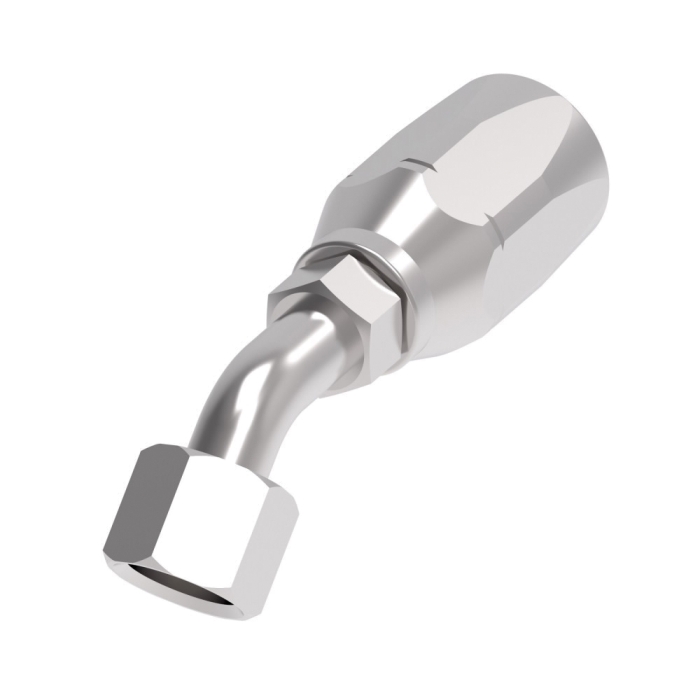

Weatherhead® 425 N Zinc Clear Trivalent Chromate Carbon Steel Female SAE 37 deg JIC Flare Swivel Field Attachable Reusable 45 deg Elbow
Weatherhead® 425 N Field Attachable Reusable 45 deg Elbow, Hose X SAE 37 deg JIC Flare Swivel, Zinc Clear Trivalent Chromate, Carbon Steel
-
ARGPN: 42516N-696
-
-
Connection Size 1:
-
Connection Size 2:
-
Connection Size 1:
Weatherhead® Field Attachable Reusable 45 deg Tube Elbow, Series: 425 N, Connection Type 1: Hose, Connection Size 1: 1 in, Hose Dash Size: 16, Connection Type 2: SAE 37 deg JIC Flare Swivel, Gender 2: Female, Connection Size 2: 1 in, Nominal Size: 1 in, Thread Size 2: 1-5/16-12, Hex Size: 1-3/4 x 1-1/2 in, Cut-Off Factor: 1.1 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: H425 Series Hoses, Dimensions: 6.17 in l x 1.75 in W x 2.72 in H, Dimension Standards: SAE 100R2
| Connection Size 1 | : | 1 in |
| Connection Size 2 | : | 1 in |
| Connection Type | : | Hose~JIC Female Swivel |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | SAE 37 deg JIC Flare Swivel |
| Cut-Off Factor | : | 1.1 in |
| Dimension Standards | : | SAE 100R2 |
| Dimensions | : | 6.17 in l x 1.75 in W x 2.72 in H |
| Finish | : | Dura-Kote |
| Fitting Type | : | 45 deg Elbow |
| For Use With | : | H425 Series Hoses |
| Gender 2 | : | Female |
| Hex Size | : | 1-3/4 x 1-1/2 in |
| Hose Dash Size | : | 16 |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Nominal Size | : | 1 in |
| Series | : | 425 N |
| Shape | : | 45 deg Elbow |
| Thread Size 2 | : | 1-5/16-12 |
- Good selection of hose ends
- Non-mandrel assembly
Warranty: 5 Years Limited
Applications: High-pressure hydraulic applications such as construction, farm implement and industrial equipment
