Weatherhead® 42504N-664 42504N-664

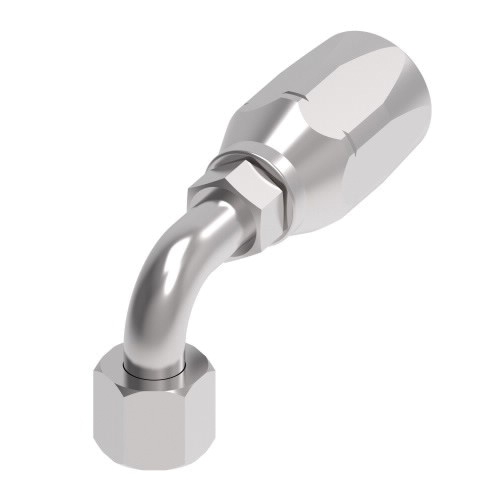

Weatherhead® 425 N Zinc Clear Trivalent Chromate Carbon Steel Female SAE 37 deg JIC Flare Swivel Field Attachable Reusable 90 deg Elbow

Weatherhead® 425 N Field Attachable Reusable 90 deg Elbow, Hose X SAE 37 deg JIC Flare Swivel, Zinc Clear Trivalent Chromate, Carbon Steel, 4000 psi

  • ARGPN: 42504N-664 loading
  • Add to cart
    Add To Favorites
    • pin-int

    Weatherhead® Field Attachable Reusable 90 deg Elbow, Series: 425 N, Connection Type 1: Hose, Gender 1: Female, Connection Size 1: 1/4 in, Hose Dash Size: 04, Connection Type 2: SAE 37 deg JIC Flare Swivel, Gender 2: Female, Connection Size 2: 1/4 in, Nominal Size: 1/4 in, Thread Size 2: 7/16-20, Hex Size: 13/16 x 9/16 in, 4000 psi, Cut-Off Factor: 1.69 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: H425 Series Hoses, Dimensions: 3.03 in L x 0.87 in W x 1.46 in H, Dimension Standards: SAE 100R2

    Connection Size 1      :      1/4 in
    Connection Size 2      :      1/4 in
    Connection Type      :      Hose~JIC Female Swivel
    Connection Type 1      :      Hose
    Connection Type 2      :      SAE 37 deg JIC Flare Swivel
    Cut-Off Factor      :      2.71 in
    Dimension Standards      :      SAE 100R2
    Dimensions      :      3.03 in L x 0.87 in W x 1.46 in H
    Finish      :      Zinc Clear Trivalent Chromate
    Fitting Type      :      90 deg Elbow
    For Use With      :      H425 Series Hoses
    Gender 2      :      Female
    Hex Size      :      13/16 x 9/16 in
    Hose Dash Size      :      04
    Material      :      Steel
    Material Construction      :      Carbon Steel
    Nominal Size      :      1/4 in
    Pressure Rating      :      4000 psi
    Series      :      425 N
    Shape      :      90 deg Elbow
    Thread Size 2      :      7/16-20
    • Good selection of hose ends
    • Non-mandrel assembly

    Applications: High-pressure hydraulic applications such as construction, farm implement and industrial equipment

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Weatherhead_24704N-B04_CAT.pdf
    • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Weatherhead_42504N-664_TD.pdf
