Weatherhead® 42516N-G16 42516N-G16

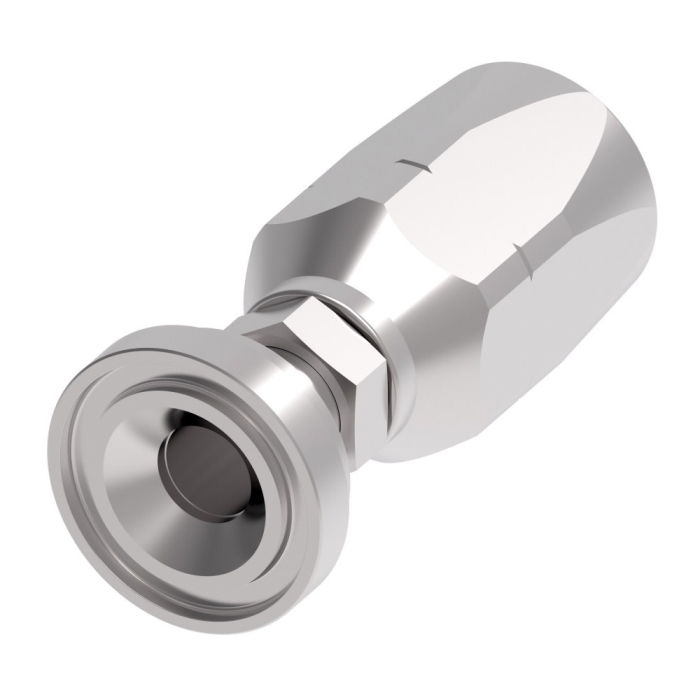

Weatherhead® 425 N Zinc Clear Trivalent Chromate Carbon Steel SAE Code 61 Split Flange Field Attachable Reusable Straight Hose End

Weatherhead® 425 N Field Attachable Reusable Straight Hose End, Hose X SAE Code 61 Flange, Zinc Clear Trivalent Chromate, Carbon Steel

  • ARGPN: 42516N-G16 loading
    • Connection Size 1:
    • Connection Size 2:
  • Add to cart
    Add To Favorites
    • pin-int

    Weatherhead® Field Attachable Reusable Straight Hose End, Series: 425 N, Connection Type 1: Hose, Connection Size 1: 1 in, Hose Dash Size: 16, Connection Type 2: SAE Code 61 Flange, Connection Size 2: 1 in, Hex Size: 1-3/4 x 1-1/4 in, Cut-Off Factor: 2-1/2 in, Material Construction: Carbon Steel, Finish: Zinc Clear Trivalent Chromate, For Use With: H425 Series Hoses, Dimensions: 4.21 in L x 1.75 in W x 1.75 in H, Dimension Standards: SAE 100R2

    Connection Size 1      :      1 in
    Connection Size 2      :      1 in
    Connection Type      :      Hose~Code 61 Flange
    Connection Type 1      :      Hose
    Connection Type 2      :      SAE Code 61 Flange
    Cut-Off Factor      :      2-1/2 in
    Dimension Standards      :      SAE 100R2
    Dimensions      :      4.21 in L x 1.75 in W x 1.75 in H
    Finish      :      Zinc Clear Trivalent Chromate
    Fitting Type      :      Straight Hose End
    For Use With      :      H425 Series Hoses
    Hex Size      :      1-3/4 x 1-1/4 in
    Hose Dash Size      :      16
    Material      :      Steel
    Material Construction      :      Carbon Steel
    Series      :      425 N
    Shape      :      Straight
    • Good selection of hose ends
    • Non-mandrel assembly

    Applications: High-pressure hydraulic applications such as construction, farm implement and industrial equipment
