Weatherhead® 4SA16FJ16 4SA16FJ16

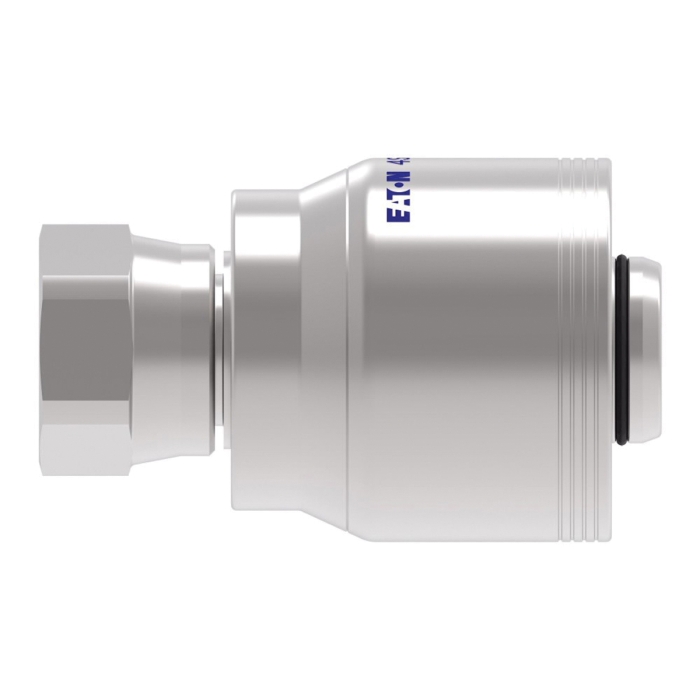

Weatherhead® 4S Series Dura-Kote Carbon Steel Female SAE 37 deg JIC Swivel 4-Spiral Crimp Straight Hose Fitting

Weatherhead® 4S 4-Spiral Crimp Straight Hose Fitting, Hose X SAE 37 deg JIC Swivel, Dura-Kote, Carbon Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Weatherhead® 4-Spiral Crimp Straight Hose Fitting, Series: 4S, Connection Type 1: Hose, Connection Size 1: 1 in, Hose Dash Size: 16, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1 in, Nominal Size: 1 in, Thread Size 2: 1-5/16-12, Hex Size: 1-5/8 x 1-1/2 in, Cut-Off Factor: 1.94 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: EC525-12 to -32, GH493-12 to FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12, -16, GH506-12 to -32, FC254-12 to -32, EC810-12, -16, EC600-12, -16 H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32, and H485-16 Series Hoses, Dimensions: 3.51 in L x 2.084 in W x 2.084 in H, Dimension Standards: SAE J1176

    Connection Size 1      :      1 in
    Connection Size 2      :      1 in
    Connection Type      :      Hose~JIC Female Swivel
    Connection Type 1      :      Hose
    Connection Type 2      :      SAE 37 deg JIC Swivel
    Cut-Off Factor      :      1.94 in
    Dimension Standards      :      SAE J1176
    Dimensions      :      3.51 in L x 2.084 in W x 2.084 in H
    Finish      :      Dura-Kote
    Fitting Type      :      Straight Hose Fitting
    For Use With      :      EC525-12 to -32, GH493-12 to FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12, -16, GH506-12 to -32, FC254-12 to -32, EC810-12, -16, EC600-12, -16 H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32, and H485-16 Series Hoses
    Gender 2      :      Female
    Hex Size      :      1-5/8 x 1-1/2 in
    Hose Dash Size      :      16
    Material      :      Steel
    Material Construction      :      Carbon Steel
    Nominal Size      :      1 in
    Series      :      4S
    Shape      :      Straight
    Thread Size 2      :      1-5/16-12

    Eaton's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion-resistance results in higher operating performance and less equipment downtime.

    • New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
    • New patent pending dura-seal technology to eliminate hose assembly cool down leakage
    • Class zero leakage SAE J1176 on approved hose styles
    • Eaton's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_B7705X10_CAT.pdf
