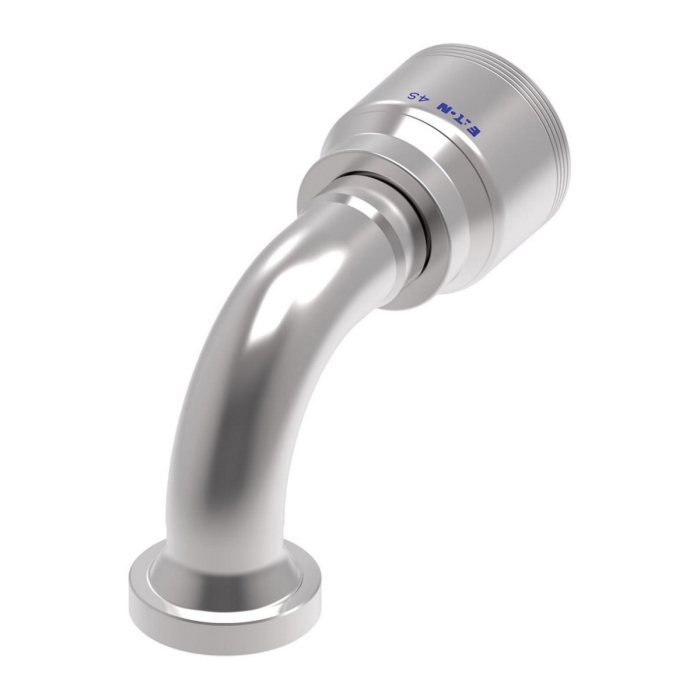

Weatherhead® 4S Series Dura-Kote Carbon Steel SAE Code 62 Flange 4-Spiral Crimp Hose 90 deg Elbow

Weatherhead® 4S 4-Spiral Crimp Hose 90 deg Elbow, Hose X SAE Code 62 Flange, Dura-Kote, Carbon Steel

ARGPN: 4S16FHB16
- Connection Size 1:
  - 1-1/4 in
    Connection Size 1
    1-1/4 in
  - 1-1/2 in
    Connection Size 1
    1-1/2 in
  - 1 in
    Connection Size 1
    1 in
  - 3/4 in
    Connection Size 1
    3/4 in
- Connection Size 2:
  - 1-1/4 in
    Connection Size 2
    1-1/4 in
  - 1-1/2 in
    Connection Size 2
    1-1/2 in
  - 2 in
    Connection Size 2
    2 in
  - 3/4 in
    Connection Size 2
    3/4 in
  - 1 in
    Connection Size 2
    1 in

Add to cart

Description
Specs
Features
Documents

Weatherhead® 4-Spiral Crimp Hose 90 deg Elbow, Series: 4S, Connection Type 1: Hose, Connection Size 1: 1 in, Hose Dash Size: 16, Connection Type 2: SAE Code 62 Flange, Connection Size 2: 1 in, Cut-Off Factor: 3.39 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: EC525-12 to -32, GH493-12 to -32, FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12 and -16, GH506-12 to -32, FC254-12 to -32, EC810-12 and -16, EC600-12 and -16, H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32, and H485-16 Hoses, Dimensions: 4.94 in L x 2.084 in W x 2.8 in H, Dimension Standards: SAE J1176

Connection Size 1	:	1 in
Connection Size 2	:	1 in
Connection Type	:	Hose~Code 62 Flange
Connection Type 1	:	Hose
Connection Type 2	:	SAE Code 62 Flange
Cut-Off Factor	:	3.39 in
Dimension Standards	:	SAE J1176
Dimensions	:	4.94 in L x 2.084 in W x 2.8 in H
Finish	:	Dura-Kote
Fitting Type	:	90 deg Elbow
For Use With	:	EC525-12 to -32, GH493-12 to -32, FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12 and -16, GH506-12 to -32, FC254-12 to -32, EC810-12 and -16, EC600-12 and -16, H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32, and H485-16 Hoses
Hose Dash Size	:	16
Material	:	Steel
Material Construction	:	Carbon Steel
Series	:	4S
Shape	:	90 deg Elbow

Eaton's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion-resistance results in higher operating performance and less equipment downtime.

New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
New patent pending dura-seal technology to eliminate hose assembly cool down leakage
Class zero leakage SAE J1176 on approved hose styles
Eaton's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
