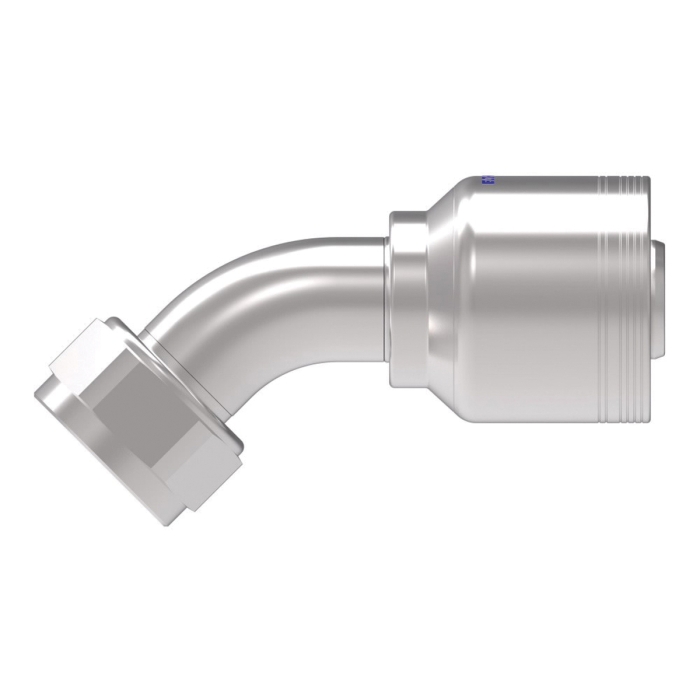

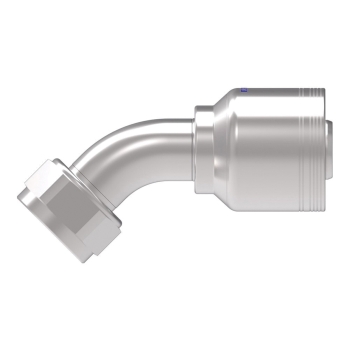

Weatherhead® 6S Series Dura-Kote Carbon Steel Female JIC 37 deg Swivel 6-Spiral Crimp Hose 45 deg Elbow

Weatherhead® 6S 6-Spiral Crimp Hose 45 deg Elbow, Hose X 37 deg JIC Swivel, Dura-Kote, Carbon Steel

ARGPN: 6SA20FJA20
- Connection Size 1:
  - 1-1/4 in
    Connection Size 1
    1-1/4 in
  - 1-1/2 in
    Connection Size 1
    1-1/2 in
- Connection Size 2:
  - 1-1/4 in
    Connection Size 2
    1-1/4 in
  - 1-1/2 in
    Connection Size 2
    1-1/2 in
- Nominal Size:
  - 1-1/4 in
    Nominal Size
    1-1/4 in
  - 1-1/2 in
    Nominal Size
    1-1/2 in

Add to cart

Description
Specs
Features
Documents

Weatherhead® 6-Spiral Crimp Hose 45 deg Elbow, Series: 6S, Connection Type 1: Hose, Connection Size 1: 1-1/4 in, Hose Dash Size: 20, Connection Type 2: 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1-1/4 in, Nominal Size: 1-1/4 in, Thread Size 2: 1-5/8-12, Hex Size: 2 in, Cut-Off Factor: 3.17 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: FC500-32, FC273B-20 to -32, FC606-16 to -24, EC810-20 to -32, GH466-20 and -24, H471-32, EC810-20 to -32, H485-20 and -24 Hoses, Dimensions: 7.01 in L x 2.61 in W x 4.2 in H, Dimension Standards: SAE J1176

Connection Size 1	:	1-1/4 in
Connection Size 2	:	1-1/4 in
Connection Type	:	Hose~JIC Female Swivel
Connection Type 1	:	Hose
Connection Type 2	:	37 deg JIC Swivel
Cut-Off Factor	:	3.17 in
Dimension Standards	:	SAE J1176
Dimensions	:	5.37 in L x 2.61 in W x 1.26 in H
Finish	:	Dura-Kote
Fitting Type	:	45 deg Elbow
For Use With	:	FC500-32, FC273B-20 to -32, FC606-16 to -24, EC810-20 to -32, GH466-20 and -24, H471-32, EC810-20 to -32, H485-20 and -24 Hoses
Gender 2	:	Female
Hex Size	:	2 in
Hose Dash Size	:	20
Material	:	Steel
Material Construction	:	Carbon Steel
Nominal Size	:	1-1/4 in
Series	:	6S
Shape	:	45 deg Elbow
Thread Size 2	:	1-5/8-12

Eaton's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion-resistance results in higher operating performance and less equipment downtime.

New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
New patent pending dura-seal technology to eliminate hose assembly cool down leakage
Class zero leakage SAE J1176 on approved hose styles
Eaton's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
