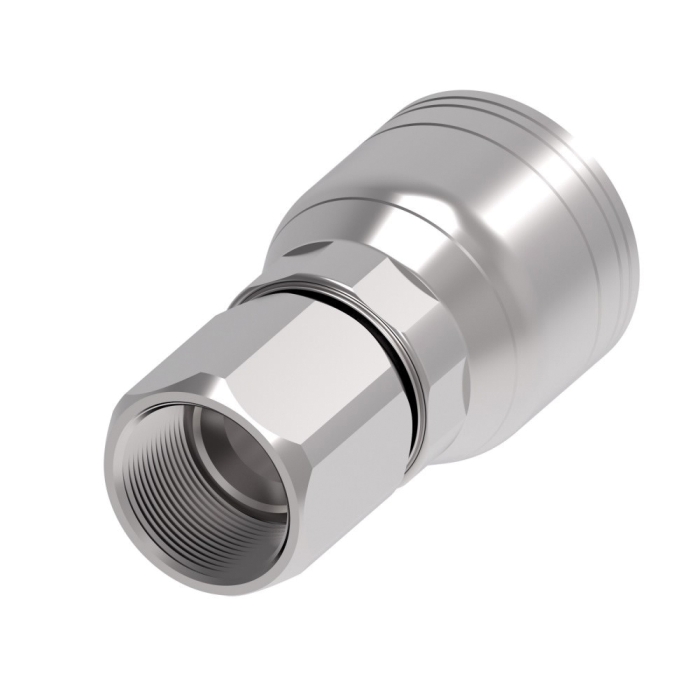

Weatherhead® 04Z-604 04Z-604

Description
Specs
Features
Documents

Weatherhead® Crimp Straight Hose Fitting, Series: Z, Connection Type 1: Hose, Connection Size 1: 1/4 in, Hose Dash Size: 04, Connection Type 2: 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1/4 in, Nominal Size: 1/4 in, Thread Size 2: 7/16-20, Hex Size: 0.55 x 0.5625 in, Cut-Off Factor: 1.05 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 and -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949, EC115, EC215, EC110, EC210, and EC118 Series Hoses, Dimensions: 2.05 in L x 0.88 in W x 0.88 in H, Dimension Standards: SAE J1176

Connection Size 1	:	1/4 in
Connection Size 2	:	1/4 in
Connection Type	:	Hose~JIC Female Swivel
Connection Type 1	:	Hose
Connection Type 2	:	37 deg JIC Swivel
Cut-Off Factor	:	1.05 in
Dimension Standards	:	SAE J1176
Dimensions	:	2.05 in L x 0.88 in W x 0.88 in H
Finish	:	Dura-Kote
Fitting Type	:	Straight Hose Fitting
For Use With	:	H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 and -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949, EC115, EC215, EC110, EC210, and EC118 Series Hoses
Gender 2	:	Female
Hex Size	:	0.55 x 0.5625 in
Hose Dash Size	:	04
Industry Category	:	Marine Hydraulic Hose Ends
Material	:	Steel
Material Construction	:	Carbon Steel
Nominal Size	:	1/4 in
Series	:	Z
Shape	:	Straight
Thread Size 2	:	7/16-20
