Weatherhead® 06Z-A26 06Z-A26

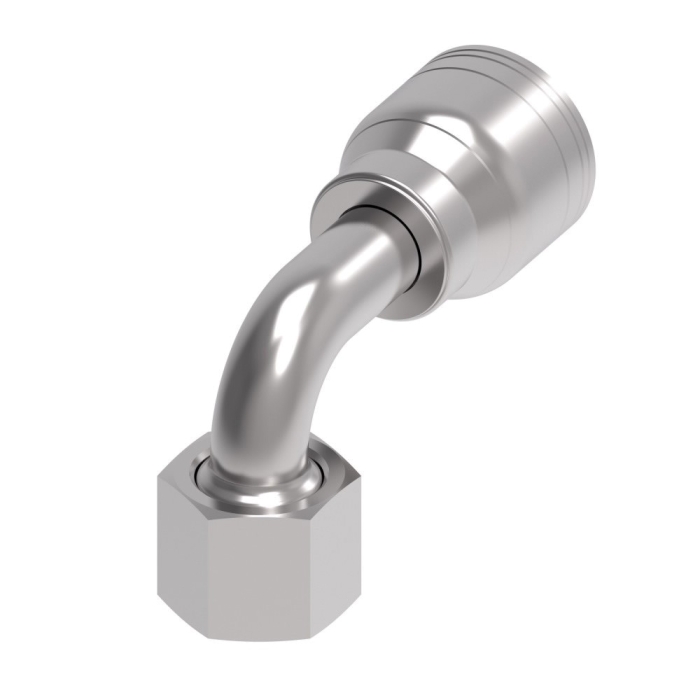

Weatherhead® Z Series Dura-Kote Carbon Steel Female ORFS Swivel Crimp Hose 90 deg Short Drop Tube Elbow

Weatherhead® Z Series Crimp Hose 90 deg Short Drop Tube Elbow, Hose X ORFS Swivel, Dura-Kote, Carbon Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Weatherhead® Crimp Hose 90 deg Short Drop Tube Elbow, Series: Z, Connection Type 1: Hose, Connection Size 1: 3/8 in, Hose Dash Size: 06, Connection Type 2: ORFS Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Nominal Size: 5/16 in, Thread Size 2: 11/16-16, Hex Size: 0.8125 in, Cut-Off Factor: 1.34 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 and -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949, EC115, EC215, EC110, EC210, and EC118 Series Hoses, Dimensions: 3.03 in L x 1.07 in W x 1.80 in H, Dimension Standards: SAE J1176

    Connection Size 1      :      3/8 in
    Connection Size 2      :      3/8 in
    Connection Type      :      Hose~ORFS Female Swivel
    Connection Type 1      :      Hose
    Connection Type 2      :      ORFS Swivel
    Cut-Off Factor      :      1.34 in
    Dimension Standards      :      SAE J1176
    Dimensions      :      3.03 in L x 1.07 in W x 1.80 in H
    Finish      :      Dura-Kote
    Fitting Type      :      90 deg Elbow
    For Use With      :      H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 and -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949, EC115, EC215, EC110, EC210, and EC118 Series Hoses
    Gender 2      :      Female
    Hex Size      :      0.8125 in
    Hose Dash Size      :      06
    Material      :      Steel
    Material Construction      :      Carbon Steel
    Nominal Size      :      3/8 in
    Series      :      Z
    Shape      :      90 deg Elbow
    Thread Size 2      :      11/16-16
    • Dura-Kote™ plating for superior corrosion resistance
    • Innovative design to deliver performance and maximum uptime
    • System engineered to extend hose assembly life

    Applications: General-purpose low and medium-pressure hydraulics

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Weatherhead_04Z-10E_CAT.pdf
