Weatherhead® 08Z-A28 08Z-A28

Description
Specs
Features
Documents

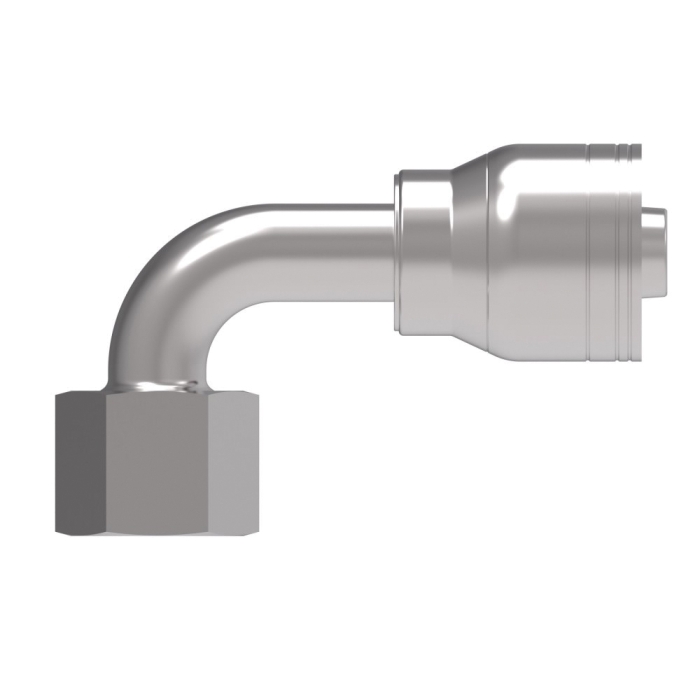

Weatherhead® Crimp Hose 90 deg Short Drop Tube Elbow, Series: Z, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: ORFS Swivel, Gender 2: Female, Connection Size 2: 13/16 in, Thread Size 2: 13/16-16, Hex Size: 0.9375 in, Cut-Off Factor: 1.67 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 and -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949, EC115, EC215, EC110, EC210, and EC118 Series Hoses, Dimensions: 3.73 in L x 1.22 in W x 2.19 in H, Dimension Standards: SAE J1176

Connection Size 1	:	1/2 in
Connection Size 2	:	13/16 in
Connection Type	:	Hose~ORFS Female Swivel
Connection Type 1	:	Hose
Connection Type 2	:	ORFS Swivel
Cut-Off Factor	:	1.67 in
Dimension Standards	:	SAE J1176
Dimensions	:	3.73 in L x 1.22 in W x 2.19 in H
Finish	:	Dura-Kote
Fitting Type	:	90 deg Elbow
For Use With	:	H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 and -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949, EC115, EC215, EC110, EC210, and EC118 Series Hoses
Gender 2	:	Female
Hex Size	:	0.9375 in
Hose Dash Size	:	08
Material	:	Steel
Material Construction	:	Carbon Steel
Series	:	Z
Shape	:	90 deg Elbow
Thread Size 2	:	13/16-16
