Winner® EC415-10L EC415-10L

Winner® EC415-10L

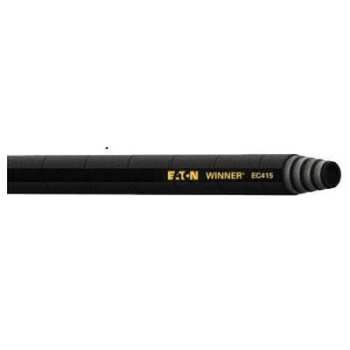

Winner® EC415 Black Synthetic Rubber Hydraulic Spiral Hose, 0.62 in, 1 ft L, 4050 psi

pin-int

Winner® Hydraulic Spiral Hose, Series: EC415, Nominal Size: 5/8 in, Dash Size: 10, 1 in OD, 0.62 in ID, 0.47 in Thick Wall, 141 ft Length, 4050 psi, SAE Rating: SAE 100R12, Material Construction: Synthetic Rubber, Synthetic Rubber Cover, Construction: 4-Spiral Wire, Black, 7.87 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 250 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      7.87 in
Color      :      Black
Construction      :      4-Spiral Wire
Cover Material      :      Synthetic Rubber
Dash Size      :      10
Inside Diameter      :      0.62 in
Length      :      1475 ft
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      5/8 in
Outside Diameter      :      1 in
Pressure Rating      :      4050 psi
Product Type      :      Hydraulic Spiral Hose
Resistance Properties      :      Abrasion
SAE Rating      :      SAE 100R12
Series      :      EC415
Temperature High      :      250 deg F
Temperature Low      :      -40 deg F
Wall Thickness      :      0.47 in

Applications: Hydraulic system service with petroleum and water-based fluids and general industrial use

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Winner_EC415-10L_CAT.pdf
