Aeroquip® by Danfoss 6S32FHA32

Aeroquip® by Danfoss

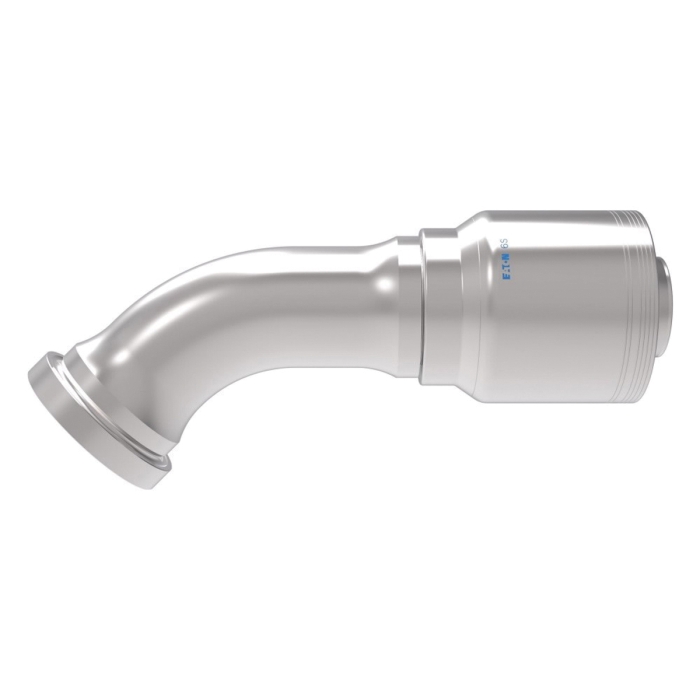

Aeroquip® by Danfoss 6S Series Dura-Kote Carbon Steel SAE Code 62 Flange 6-Spiral Crimp Hose 45 deg Elbow, 2 in

  • Manufacturer: Danfoss
  • Brand: Aeroquip® by Danfoss
  • ARGPN: 6S32FHA32
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Danfoss factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Aeroquip® by Danfoss 6-Spiral Crimp Hose 45 deg Elbow, Series: 6S, Connection Type 1: Hose, Gender 1: Female, Connection Size 1: 2 in, Hose Dash Size: 32, Connection Type 2: SAE Code 62 Flange, Connection Size 2: 2 in, Cut-Off Factor: 6.93 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: FC500-32, FC273B-20 thru -32, FC606-16 thru -24, EC810-20 thru -32, GH466-20,-24 H471-32, EC810-20 thru -32, and H485-20,-24 Series Hoses, Dimensions: 11.559 in L x 3.555 in W x 5.604 in H, Dimension Standards: SAE J1176

Connection Size 1      :      2 in
Connection Size 2      :      2 in
Connection Type      :      Hose~Code 62 Flange
Connection Type 1      :      Hose
Connection Type 2      :      SAE Code 62 Flange
Cut-Off Factor      :      6.93 in
Dimension Standards      :      SAE J1176
Dimensions      :      11.559 in L x 3.555 in W x 5.604 in H
Finish      :      Dura-Kote
Fitting Type      :      45 deg Elbow
For Use With      :      FC500-32, FC273B-20 thru -32, FC606-16 thru -24, EC810-20 thru -32, GH466-20,-24 H471-32, EC810-20 thru -32, and H485-20,-24 Series Hoses
Gender 1      :      Female
Hose Dash Size      :      32
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      6S
Shape      :      45 deg Elbow
Eaton's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion-resistance results in higher operating performance and less equipment downtime.New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistantNew patent pending dura-seal technology to eliminate hose assembly cool down leakageClass zero leakage SAE J1176 on approved hose stylesEaton's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_210212-16S_CAT.pdf
