Aeroquip® by Danfoss DC394-32RD DC394-32RD

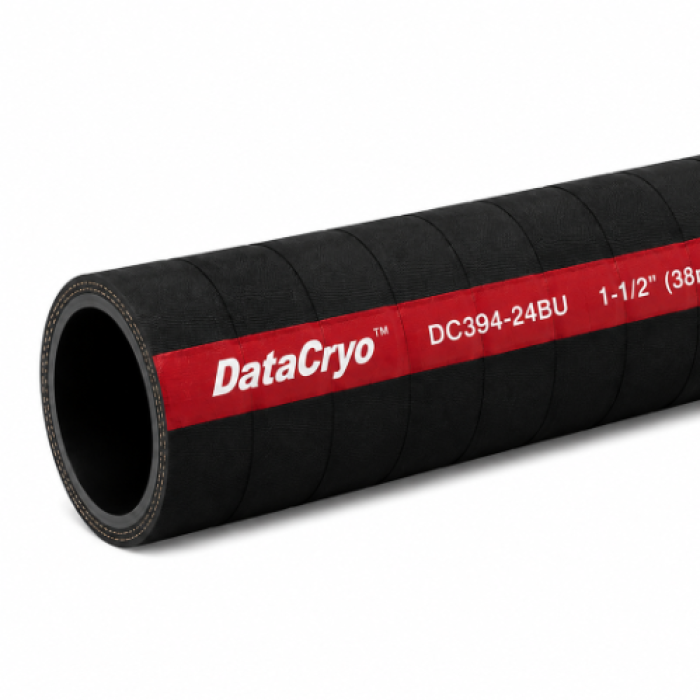

Aeroquip® by Danfoss DataCryo DC394 EPDM Liquid Cooling Hose, Red Layline

Aeroquip® by Danfoss DC394-32RD EPDM Liquid Cooling Hose, 2 in ID x 2.52 in OD, 150 psi WP, 1.97 in MBR, Red Layline, UL 94 V-0, 200 ft Coil

pin-int

As data centers scale to meet rising processing demands, liquid cooling keeps processors at optimal temperatures. The Aeroquip by Danfoss DataCryo DC394 delivers safe, leak-free, ultra-flexible coolant source lines engineered for these emerging applications.

Aeroquip® by Danfoss DataCryo DC394 liquid cooling hose features a peroxide-cured, zinc- and calcium-free synthetic EPDM tube, textile fabric reinforcement with a steel wire helix, and a fire-retardant channelled EPDM-P cover rated UL 94 V-0. Engineered as an ultra-flexible source line for data center liquid cooling, it delivers leak-free coolant to server racks with a best-in-class bend radius and low force to bend. The DC394-32RD has a 2 in ID (50.8 mm), 2.52 in OD (64.0 mm), 150 psi (10.5 bar) working pressure, 600 psi (42 bar) minimum burst, 1.97 in (50 mm) minimum bend radius, and full vacuum service to 28 in Hg (94.8 kPa). Supplied on a 61 m (200 ft) coil with a red layline and qualified for Danfoss 1G crimp fittings. Halogen-free, 100% sulfur-free EPDM construction with a low coefficient of friction reduces corrosion risk and pressure drop for improved liquid-cooling system efficiency. Operating temperature range -40 deg F to +284 deg F (-40 deg C to +140 deg C). Order fulfillment: made to stock.

Bend Radius      :      1.97 in
Color      :      Red
Cover Material      :      Fire Retardant, Channelled EPDM-P Rubber
Inner Diameter      :      2 in
Material      :      Peroxide-cured, Zinc-Free Synthetic EPDM
Material Construction      :      Textile Fabric with Steel Wire Helix
Minimum Burst Pressure      :      600 psi
Nominal Size      :      2 in
Operating Temperature      :      -40 to 284 deg F
Outside Diameter      :      2.52 in
Product Type      :      Liquid Cooling
Series      :      DC394
Sub Brand      :      DataCryo
Working Pressure      :      150 psi
Hose ID: 2 in (50.8 mm) | Hose OD: 2.52 in (64.0 mm) | Working Pressure: 150 psi (10.5 bar) | Min Burst Pressure: 600 psi (42 bar) | Min Bend Radius: 1.97 in (50 mm) | Vacuum Service: 28 in Hg (94.8 kPa) | Weight: 1.04 lb/ft | Operating Temp: -40 to 284 deg F | Reinforcement: Textile fabric with steel wire helix | Cover: Fire-retardant EPDM-P (UL 94 V-0) | Packaging: 61 m (200 ft) Coil
