Boston® EHW028-16-100 EHW028-16-100

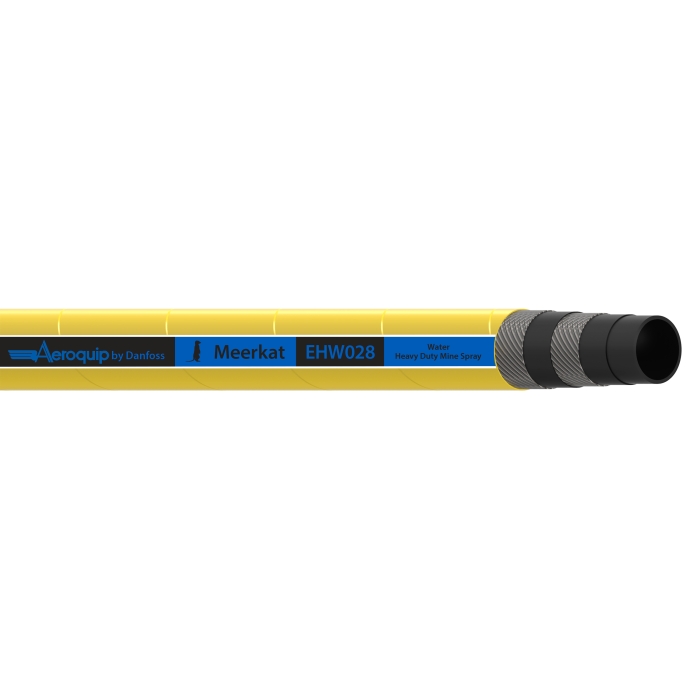

Aeroquip® by Danfoss EHW028 Yellow Nitrile Heavy-Duty Mine Spray Hose

Aeroquip® by Danfoss Heavy-Duty Mine Spray Hose Series EHW028 is designed for high-pressure air delivery in mining, construction, and equipment rental applications. Featuring an oil-mist-resistant NBR blend tube and a pin-pricked neoprene blend cover, it offers durability and safety in demanding environments. Reinforced with high-tensile steel wire, this hose is rated for 1000 psi and operates effectively in temperatures ranging from -31°F to 212°F, ensuring reliable performance under extreme conditions.

  • ARGPN: EHW028-16-100 loading
pin-int

Danfoss Heavy-Duty Mine Spray Hose, Series: EHW028, Nominal Size: 1 in, 1.35 in OD, 1 in ID, 1 ft Length, 1000 psi, Material Construction: Nitrile, Pin-Pricked Neoprene Blend Cover, Construction: High-Tensile Steel Wire, Yellow, 12.01 in Bend Radius, Resistance Properties: Oil-Mist, -31 deg F Low, 212 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      12.01 in
Color      :      Yellow
Construction      :      High-Tensile Steel Wire
Cover Material      :      Pin-Pricked Neoprene Blend
Inside Diameter      :      1 in
Length      :      100 ft
Material      :      Nitrile
Material Construction      :      Nitrile
Nominal Size      :      1 in
Outside Diameter      :      1.35 in
Pressure Rating      :      1000 psi
Product Type      :      Spray Hose
Resistance Properties      :      Oil-Mist
Series      :      EHW028
Temperature High      :      212 deg F
Temperature Low      :      -31 deg F
  • Oil-mist-resistant NBR blend tube
  • MSHA pin pricked neoprene blend cover

Applications: High pressure air for mining, construction and equipment rental

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Eaton_EHW028-16-100_CAT.pdf
