Aeroquip® by Danfoss ET4020-006

Aeroquip® by Danfoss

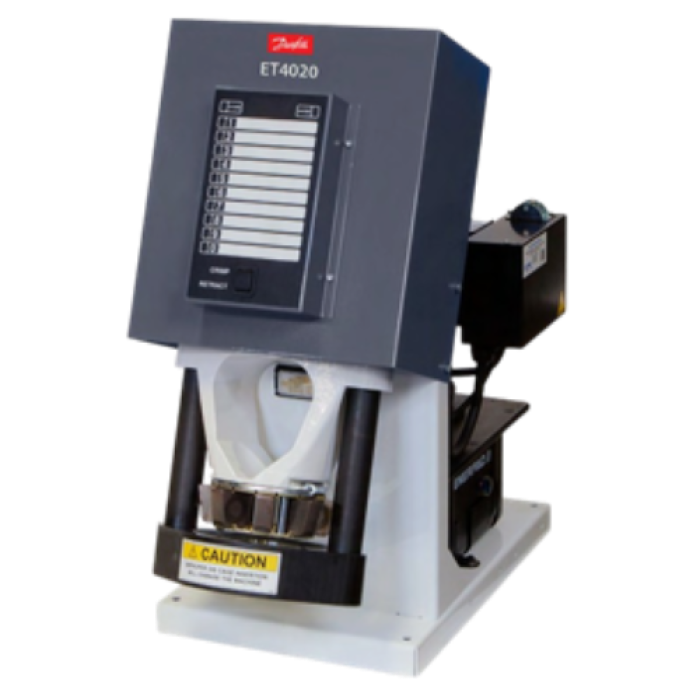

Aeroquip® by Danfoss ET4020 Benchtop Crimp Machine with Dies, -4 to -20, -6 to -20 Spiral Range

  • Manufacturer: Danfoss
  • Brand: Aeroquip® by Danfoss
  • ARGPN: ET4020-006
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Danfoss factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Aeroquip® by Danfoss Benchtop Crimp Machine with Dies, Series: ET4020, Maximum Crimp Range: -4 to -20, -6 to -20 Spiral, 115 V, Includes: ET4020-115 Crimp Machine, FT1380-200-M150, FT1380-200-M180, FT1380-200-M210, FT1380-200-M240, FT1380-200-M280, FT1380-200-M320, FT1380-200-M370, FT1380-200-M420, FT1381-200-M465 Die Cage and W-EQCR-TM020-E Operator's Manual, Dimensions: 28-1/2 in H x 12-3/4 in W x 25-3/4 in D

Dimensions      :      28-1/2 in H x 12-3/4 in W x 25-3/4 in D
Includes      :      ET4020-115 Crimp Machine, FT1380-200-M150, FT1380-200-M180, FT1380-200-M210, FT1380-200-M240, FT1380-200-M280, FT1380-200-M320, FT1380-200-M370, FT1380-200-M420, FT1381-200-M465 Die Cage and W-EQCR-TM020-E Operator's Manual
Maximum Crimp Range      :      -4 to -20, -6 to -20 Spiral
Product Type      :      Crimp Machine
Series      :      ET4020
Voltage Rating      :      115 V
The ET4020 is a benchtop crimp machine that crimps hydraulic hose assemblies up to 1-1/4 in braided and H430 four spiral wire hose. The ET4040 crimp machine comes with a base so no benchtop is needed. The ET4040 will crimp up to 2 in braided through six heavy-spiral hydraulic hose assemblies. Both machines have programmable electronic keypads with 10 presets. These keypads simplify the hose crimping operation by allowing the machine operator to enter a predetermined setting for a specific hose type and size. The 10 most often used crimp settings can be stored for one touch retrieval. The machine will automatically crimp to the exact crimp diameter required for that hose type and size. The electronic crimp machine settings eliminate the need for spacers or shims in the crimping operation which some operators find confusing. Produces Danfoss warrantied hose assemblies, capability Semi-programmable 1-piece die cage Part of MatchMate® and WeatherMatch® programs Variable stop crimper minimal die configurations Individual die cages for each hose size Easy to electronically enter crimp setting Can pre-program 10 most popular crimp settings Die cages easily slip in and out of machine
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_ET4020-006_CAT.pdf
