Aeroquip® by Danfoss GH120-24 GH120-24

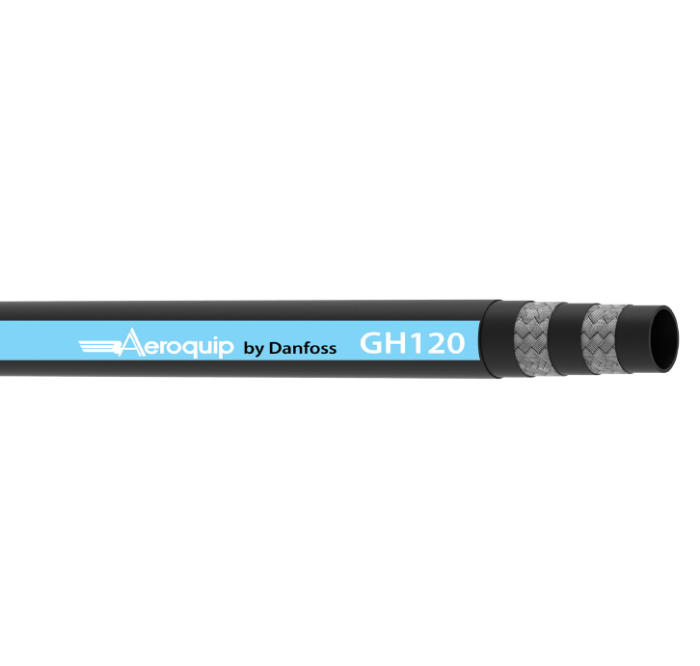

Aeroquip® by Danfoss GH120 Series 2-Wire Braided Hose,4000 psi, Black

Aeroquip® by Danfoss GH120 Series 2-Wire Braided Hose,4000 psi, Black

pin-int

Aeroquip® by Danfoss 2-Wire Braided Hose, Series: GH120 Series, Hose Type: Braided Hose,20 Dash Size, 1.5 in Inside Dia, 2.03 in Outside Dia, 1 ft Length, Rubber Cover, 2-Ply Braid Reinforcement, Black Hose Color, 10 in Bend Radius, 2000 psi, Abrasion Resistance Properties, 212 deg F Temperature High, -70 deg F Temperature Low, 0.265 in Wall Thickness

Attribute Type Configurator      :      Parent
Bend Radius      :      10 in
Cover Material      :      Rubber
Dash Size      :      24
Hose Type      :      Braided Hose
Inside Diameter      :      1.50 in
Length      :      1 ft
Nominal Size      :      1-1/2 in
Outside Diameter      :      2.03 in
Pressure Rating      :      2000 psi
Reinforcement      :      2-Ply Braid
Resistance Properties      :      Abrasion
Series      :      GH120 Series
Temperature High      :      212 deg F
Temperature Low      :      -70 deg F
Wall Thickness      :      .265 in
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_GH793-32_Catalog.pdf
