Aeroquip® by Danfoss FC839B Series Braided Hydraulic Hose, Black Danfoss Power Solutions; Aeroquip® by Danfoss

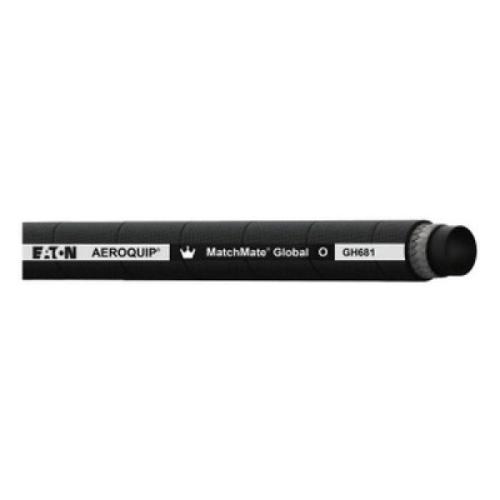

Aeroquip® by Danfoss GH681 Series Braided Hydraulic Hose, , 3200 psi, Black

Aeroquip® by Danfoss GH120 Series 2-Wire Braided Hose,4000 psi, Black

Aeroquip® by Danfoss FCH250H Series Hydraulic Hose

The Aeroquip® MatchMate® Global Braided Hydraulic Hose, Series GH781, is engineered for high-pressure hydraulic systems utilizing petroleum and water-glycol-based fluids, as well as lubricating oils and water. This hose features a nitrile tube and a durable PVC/nitrile blend cover, reinforced with two-ply braided wire, ensuring robust performance under demanding conditions. Its Dura-Tuff™ cover significantly enhances abrasion resistance, extending the hose's lifespan. The hose is designed for a working pressure of up to 6,500 psi and operates effectively within a temperature range of -50.8°F to 258.8°F. Additionally, Eaton's MatchMate™ program provides identification markings on the hose, fittings, and crimp dies, facilitating quick and accurate assembly.

Aeroquip® by Danfoss FC579 Series Hydraulic Hose, Black

The Aeroquip® by Danfoss MatchMate® Global Hydraulic Spiral Hose, Series GH493, is designed to deliver reliable performance in high-pressure hydraulic applications. Built with a synthetic rubber inner tube and a DURA-TUFF™ synthetic rubber cover, this hose offers exceptional durability and abrasion resistance, extending its service life in demanding environments. The 4-spiral wire construction ensures robust strength and flexibility, with a tight 3.5-inch bend radius for easy installation. With a maximum working pressure of 6,000 psi and an operating temperature range from -40°F to 127°F, the GH493 is suitable for hydraulic systems using petroleum and water-based fluids. Ideal for general industrial use, this hose combines rugged construction with the convenience of Aeroquip® by Danfoss MatchMate® fittings for streamlined assembly.

Aeroquip® by Danfoss FC500 Spiral Hose, Black, Synthetic Rubber, 5100 psi, SAE 100R13

Aeroquip® by Danfoss FC300 Series Engine and Fuel Hose is engineered for high-performance applications, effectively handling petroleum-based fluids, air, gasoline, fuel, lubricating oils, and various industrial fluids. Constructed with a durable AQP elastomer inner tube, it features a polyester inner braid and a single wire braid reinforcement, all encased in a blue polyester braid cover. This design ensures superior abrasion resistance and flexibility. The hose operates efficiently across a wide temperature range, from -55°F to 212°F, and maintains a minimum bend radius of 3 inches. It complies with SAE J1402 standards, making it suitable for demanding hydraulic and fuel transfer applications.

Weatherhead® by Danfoss WeatherFROST™ H245L Low-Temperature Hydraulic Hose is engineered for demanding hydraulic applications in extremely cold environments. With a synthetic rubber tube and cover, and reinforced with a 2-ply wire braid, this hose offers durability and flexibility, performing reliably at temperatures as low as -70°F. Rated for 6000 PSI with a 2-inch bend radius, it meets SAE 100R16 standards and provides excellent abrasion resistance. Ideal for hydraulic systems operating in cold climates, this hose is available in convenient 21-foot lengths with a packaging quantity of 2150 PK, making it a versatile and efficient solution for industrial applications requiring high pressure and low-temperature performance.

Weatherhead® by Danfoss WeatherSHIELD H280 Braided Hydraulic Hose is designed for high-pressure hydraulic applications in industrial, agricultural, and construction settings. Constructed with a durable synthetic rubber tube and a vinyl nitrile cover, this hose is reinforced with a 2-ply wire braid, offering excellent abrasion resistance and flexibility. With a pressure rating of 6500 PSI, a 2-inch bend radius, and a wide operating temperature range from -50°F to 260°F, it meets SAE 100R16 standards. Ideal for hydraulic systems using petroleum and water-based fluids, WeatherSHIELD H280 provides reliable performance in tough environments and extreme temperatures.

The Weatherhead® by Danfoss WeatherSHIELD H180 Braided Hydraulic Hose is engineered for hydraulic systems utilizing petroleum and water-glycol-based fluids, as well as for lubricating oils and water. It is suitable for applications in construction and agricultural equipment. The hose features a nitrile inner tube and a synthetic rubber cover, reinforced with a single ply of wire braid. It offers a working pressure of up to 3,700 psi and a minimum bend radius of 1.97 inches. The hose operates effectively within a temperature range of -50.8°F to 258.8°F. Additionally, it provides abrasion resistance, enhancing its durability in demanding environments.
