Aeroquip® by Danfoss EC810-16 EC810-16

Aeroquip® by Danfoss EC810-16

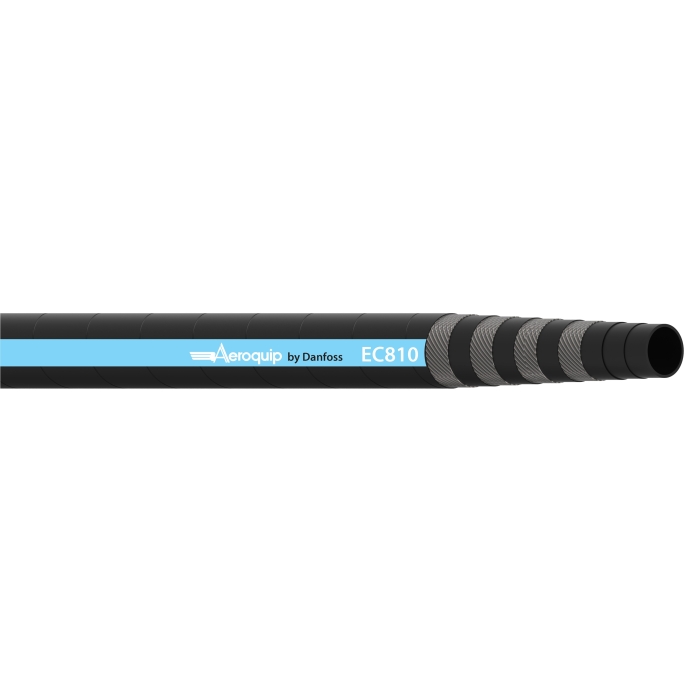

Aeroquip® by Danfoss Ice Champion™ EC810 Black Synthetic Rubber Low-Temperature Hydraulic Spiral Hose, 1 in, 1 ft L, 6100 psi

pin-int

Aeroquip® by Danfoss Ice Champion™ Low-Temperature Hydraulic Spiral Hose, Series: EC810, Nominal Size: 1 in, Dash Size: 16, 1.57 in OD, 1 in ID, 0.285 in Thick Wall, 1 ft Length, 6100 psi, SAE Rating: SAE 100R15, Material Construction: Synthetic Rubber, Synthetic Rubber Cover, Construction: 4-Spiral Wire, Black, 13.39 in Bend Radius, Resistance Properties: Abrasion, -70 deg F Low, 212 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      13.39 in
Color      :      Black
Construction      :      4-Spiral Wire
Cover Material      :      Synthetic Rubber
Dash Size      :      16
Inside Diameter      :      1 in
Length      :      1 ft
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      1 in
Outside Diameter      :      1.57 in
Pressure Rating      :      6100 psi
Product Type      :      Hydraulic Spiral Hose
Resistance Properties      :      Abrasion
SAE Rating      :      SAE 100R15
Series      :      EC810
Temperature High      :      212 deg F
Temperature Low      :      -70 deg F
Wall Thickness      :      0.285 in
  • Exclusive low temperature compound inner tube
  • Abrasion-resistant cover
  • Performs at highest hydraulic pressures typically seen in general hydraulic applications
  • Easy to assemble
  • Proven, reliable hose and fitting technology
  • Cover is MSHA qualified to use in mining applications
  • Rugged, spiral hose offers top performance in frigid temperatures

Applications: Hydraulic system service with petroleum-based fluids for low temperature applications

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_EC810-16_CAT.pdf
