Boston® EHW194-16BURL EHW194-16BURL

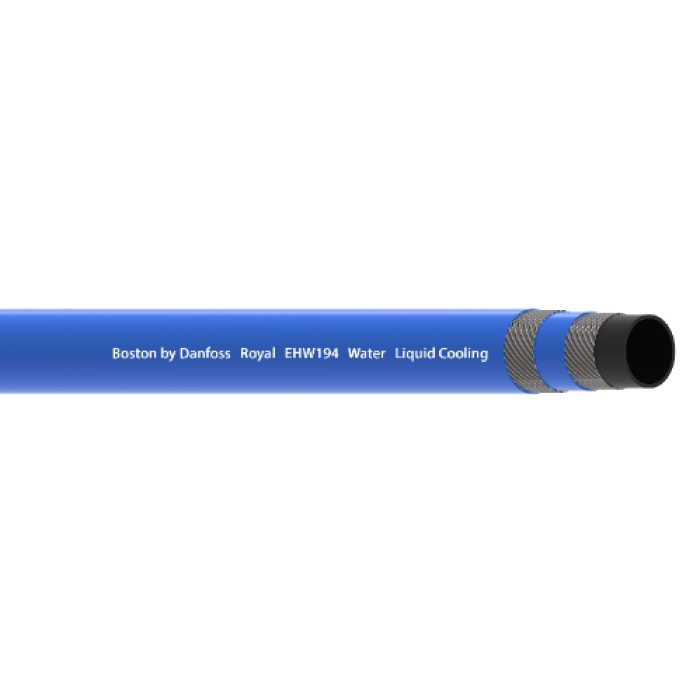

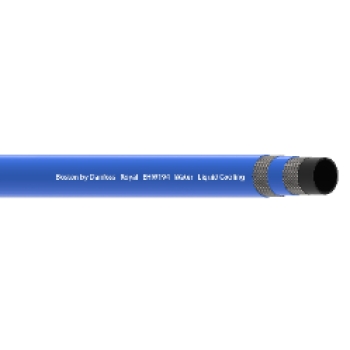

Aeroquip EHW Series EPDM Liquid Cooling Hose Blue

Aeroquip EHW194-16BURL 1 in ID x 1.44 in OD EPDM Liquid Cooling Hose, 150 PSI WP, 5.91 in MBR, Blue, UL 94 V-0, 250 ft Reel

pin-int

Aeroquip by Danfoss DataCryo EHW194 liquid cooling hose features a peroxide-cured, zinc-free synthetic EPDM tube with 2-ply textile reinforcement and a fire-retardant EPDM cover rated UL 94 V-0. Sized at 1 in (25.4 mm) ID with a 1.44 in (36.5 mm) OD, it handles 150 PSI working pressure with a 600 PSI burst rating and a 5.91 in minimum bend radius. Available in blue, 100% sulfur-free construction. Compatible with Danfoss 1G crimp, 100B socketless, Hansen UQD, and FD83 fittings. Temperature range: -40 to +140 deg C (-40 to +284 deg F). Packaged on 250 ft reels.

Bend Radius      :      5.91 in
Color      :      Blue
Inner Diameter      :      1 in
Material      :      Peroxide-cured, Zinc-Free Synthetic EPDM
Material Construction      :      2-ply Textile
Nominal Size      :      1 in
Operating Temperature      :      -40 to 284 deg F
Product Type      :      Liquid Cooling
Series      :      EHW194
Sub Brand      :      Boston
Working Pressure      :      150 psi
Hose ID: 1 in (25.4 mm) | Hose OD: 1.44 in (36.5 mm) | Working Pressure: 150 PSI | Burst Pressure: 600 PSI | Min Bend Radius: 5.91 in (150 mm) | Weight: 0.5 lbs/ft | Temperature Range: -40 to +140 deg C (-40 to +284 deg F) | Cover Color: Blue | Tube: Peroxide-cured Zinc-Free Synthetic EPDM | Reinforcement: 2-ply Textile | Certifications: UL 94 V-0; Exceeds ASTM E84 Class 1/A | Compatible Fittings: Danfoss 1G Crimp, 100B Socketless, Hansen UQD, Hansen FD83 | Packaging: 250 ft Reel | Construction: 100% Sulfur-Free
