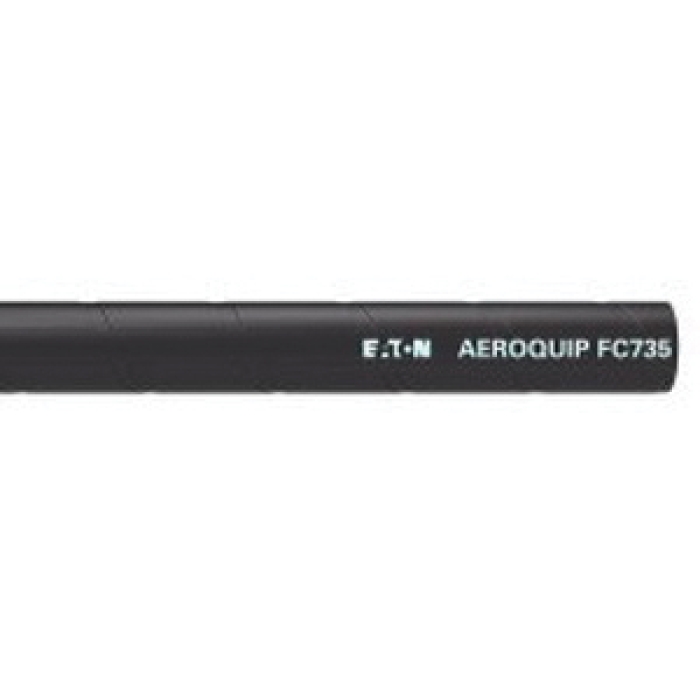

Aeroquip® FC735 Series Braided Hydraulic Hose
The Aeroquip® FC735 Series Hydraulic Hose is engineered for high-pressure hydraulic applications, particularly those subjected to significant surge peaks. Its construction features a synthetic rubber tube reinforced with two steel braids, providing durability and strength. The hose is encased in a BRUISER™ ultra-abrasion-resistant cover, ensuring maximum durability under harsh operating conditions. It meets or exceeds SAE 100R16 Type S, EN 857 Type 2SC, and ISO 11237-1 Type 2SC performance standards, The hose maintains flexibility across a wide temperature range, from -40°F to +259°F (-40°C to +126°C),, It is compatible with TTC Series fittings and is suitable for hydraulic system service with petroleum and water-based fluids, as well as general industrial applications.
-
ARGPN: FC735-06RL
-
-
Inside Diameter:
-
Inside Diameter:
Aeroquip® Hydraulic Hose, Series: FC735, Dash Size: 06, 0.7 in OD, 0.38 in ID, 0.16 in Thick Wall, 1 ft Length, 5800 psi, SAE Rating: SAE 100R16, Material Construction: Synthetic Rubber, Bruiser Cover, Construction: 2-Wire Braided, Black, 2-1/2 in Bend Radius, Resistance Properties: Premium Abrasion, -40 deg F Low, 259 deg F High
| Attribute Type Configurator | : | Parent |
| Bend Radius | : | 2-1/2 in |
| Color | : | Black |
| Construction | : | 2-Wire Braided |
| Cover Material | : | Bruiser |
| Dash Size | : | 06 |
| Inside Diameter | : | 0.38 in |
| Length | : | 1 ft |
| Material | : | Nitrile |
| Material Construction | : | Synthetic Rubber |
| Outside Diameter | : | 0.7 in |
| Pressure Rating | : | 5800 psi |
| Product Type | : | Hydraulic Hose |
| Resistance Properties | : | Premium Abrasion |
| SAE Rating | : | SAE 100R16 |
| Series | : | FC735 |
| Temperature High | : | 259 deg F |
| Temperature Low | : | -40 deg F |
| Wall Thickness | : | 0.16 in |
Applications: For high-pressure hydraulics subjected to high surge peaks
