Anchor Fluid Power SPX-16U 1979-62-16

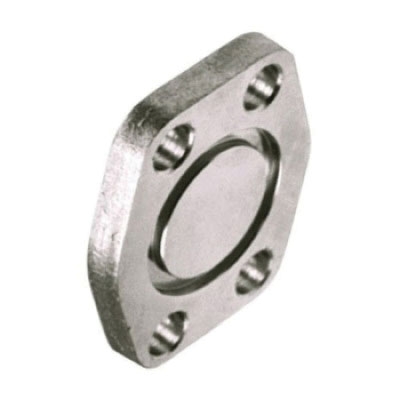

Anchor Fluid Power Silver Trivalent-Plated Carbon Steel Zero PSI Shipping Plate Kit

Anchor Fluid Power SPX-16U Silver Trivalent-Plated Carbon Steel Zero PSI Shipping Plate Kit, 1 in SAE Code 62 Flange

  • ARGPN: 1979-62-16 loading
    • Connection Size 1:
  • Add to cart
    Add To Favorites
    • pin-int

    Anchor Fluid Power Zero PSI Shipping Plate Kit, Connection Type 1: SAE Code 62 Flange, Connection Size 1: 1 in, Material Construction: Carbon Steel, Finish: Silver Trivalent-Plated, 3.19 in Length, 2-3/4 in Width, 0.33 in Height

    Connection Size 1      :      1 in
    Connection Type      :      Code 62
    Connection Type 1      :      SAE Code 62 Flange
    Finish      :      Silver Trivalent-Plated
    Fitting Type      :      Shipping Plate Kit
    Height      :      0.33 in
    Length      :      3.19 in
    Material      :      Steel
    Material Construction      :      Carbon Steel
    Shape      :      Flange
    Width      :      2-3/4 in

    Anchor Fluid Power has developed a low cost solution to leaky, gasketless port covers. Forged steel shipping plates are 0.33 in thick, silver trivalent plated for resistance to oxidation and incorporate an O-ring groove on one side for "zero pressure" applications. The opposite side has a machined flat-face for capping off hose ends.

    • Includes (1) shipping plate, (4) hex head bolts and (1) Buna-N O-ring

    Applications: For cylinder port covers, pump port covers, stub out header line covers, painting protection

    • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Anchor_Fluid_Power_SP20_SS.pdf
