Betts™ WD301ALVB WD301ALVB

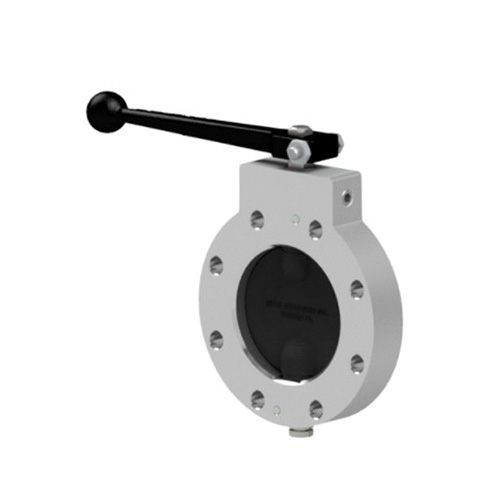

Betts™ Aluminum Manual Operated TTMA Detent Wet-R-Dri Butterfly Valve

Betts™ Manual Operated TTMA Detent Wet-R-Dri Butterfly Valve, Flange, Aluminum, 75 psi

  • ARGPN: WD301ALVB loading
  • Add to cart
    Add To Favorites
    • pin-int

    Betts™ Manual Operated TTMA Detent Wet-R-Dri Butterfly Valve, Nominal Size: 3 in, Connection Type: Flange, Actuator Type: Handle, Material Construction: Aluminum, FKM Type B Disc Trim, 1-1/8 in Width, 9 - 400 deg F, 75 psi

    California residents see Prop 65 WARNINGS

    Actuator Type      :      Handle
    Connection Type      :      Flange
    Material      :      Aluminum
    Material Construction      :      Aluminum
    Nominal Size      :      3 in
    Pressure Rating      :      75 psi
    Product Type      :      Butterfly Valve
    Temperature Rating      :      9 - 400 deg F
    Trim Material      :      FKM Type B Disc
    Width      :      1-1/8 in

    The Betts Wet-R-Dri valve is a lightweight and compact quarter-turn in-line stop valve. This easily maintained and versatile valve is widely used for liquid, gaseous or dry products and is available in a variety of sizes. The manual detent model provides a positive stop in the open and closed position as well as a detent spring and ball which assist in holding the disc in the open or closed position. The body is offered in aluminum, cast-iron or stainless-lined with coatings available for increased chemical resistance and extended service life. The disc seal and shaft O-rings are available in a variety of materials to optimize chemical resistance and service temperature range. Bolt pattern matches TTMA piping flange dimensions.

    • Manual operation

    Applications: For liquid, gaseous or dry products

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Betts_WD201ALB_CAT.pdf
