Boston® H034964-100 H034964-100

Boston® H034964-100

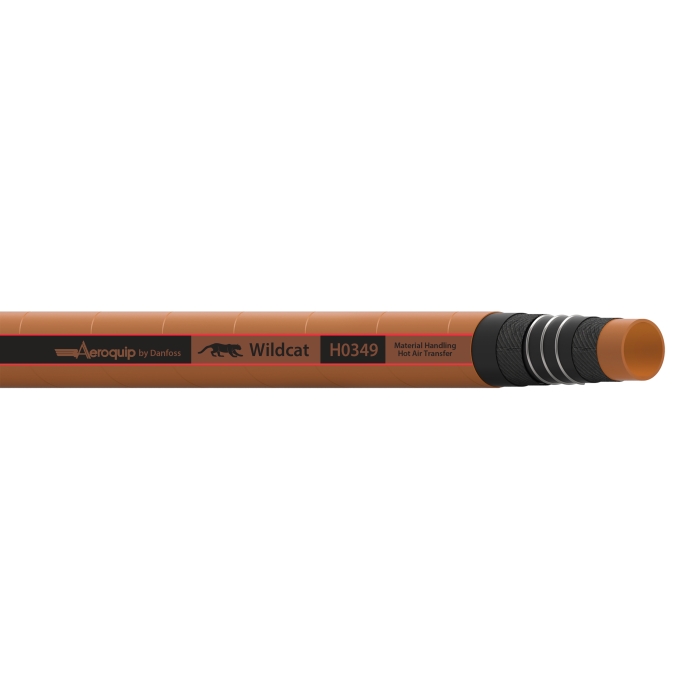

Boston® WILDCAT™ H034964-100 Brown EPDM Hot Air Hose, 1 ft L, 100 psi

pin-int

Boston® WILDCAT™ Hot Air Hose, Series: H0349, Nominal Size: 4 in, 4.59 in OD, 4 in ID, 1 ft Length, 100 psi, Material Construction: EPDM, EPDM Cover, Construction: Textile with Dual Helical Wire, Brown, 11 in Bend Radius, Resistance Properties: Abrasion, Heat, Weather, -45 deg F Low, 300 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      11 in
Color      :      Brown
Construction      :      Textile with Dual Helical Wire
Cover Material      :      EPDM
Inside Diameter      :      4 in
Length      :      100 ft
Material      :      EPDM
Material Construction      :      EPDM
Nominal Size      :      4 in
Outside Diameter      :      4.59 in
Pressure Rating      :      100 psi
Product Type      :      Air Hose
Resistance Properties      :      Abrasion, Heat, Weather
Series      :      H0349
Temperature High      :      300 deg F
Temperature Low      :      -45 deg F
  • 4:1 safety factor
  • Continuous printed brand
  • Longer length
  • Pin-pricked

Applications: Hot air blower hose, dry, non-oily air applications

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Eaton_EHA500-32YW-100_CAT.pdf
  • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Eaton_H034948-100_SS.pdf
