Brennan 6500-06-06-FG 6500-06-06

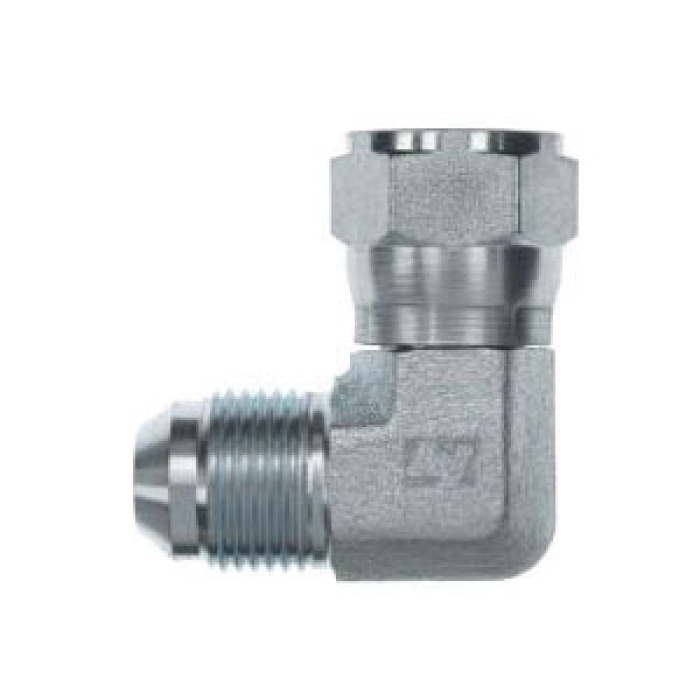

Brennan 6500 Forged Steel 90 deg Elbow

Brennan 6500 90 deg Elbow, SAE 37 deg JIC X SAE 37 deg JIC Swivel, Forged Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Brennan 90 deg Elbow, Series: 6500, Connection Type 1: SAE 37 deg JIC, Gender 1: Male, Connection Size 1: 3/8 in, Thread Size 1: 9/16-18, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: 9/16-18, Hex Size: 0.688 in, Dimension Standards: SAE 070221, 5000 psi, Material Construction: Forged Steel

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      3/8 in
    Connection Size 2      :      3/8 in
    Connection Type      :      JIC~JIC Swivel
    Connection Type 1      :      SAE 37 deg JIC
    Connection Type 2      :      SAE 37 deg JIC Swivel
    Dimension Standards      :      SAE 070221
    Fitting Type      :      90 deg Elbow
    Gender 1      :      Male
    Gender 2      :      Female
    Hex Size      :      0.688 in
    Industry Category      :      Hydraulic Adapters~Marine Hydraulic Adapters
    Material      :      Steel
    Material Construction      :      Forged Steel
    Pressure Rating      :      5000 psi
    Series      :      6500
    Shape      :      90 deg Elbow
    Thread Size 1      :      9/16-18
    Thread Size 2      :      9/16-18
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Brennan_2501-16-16-B_CAT.pdf
