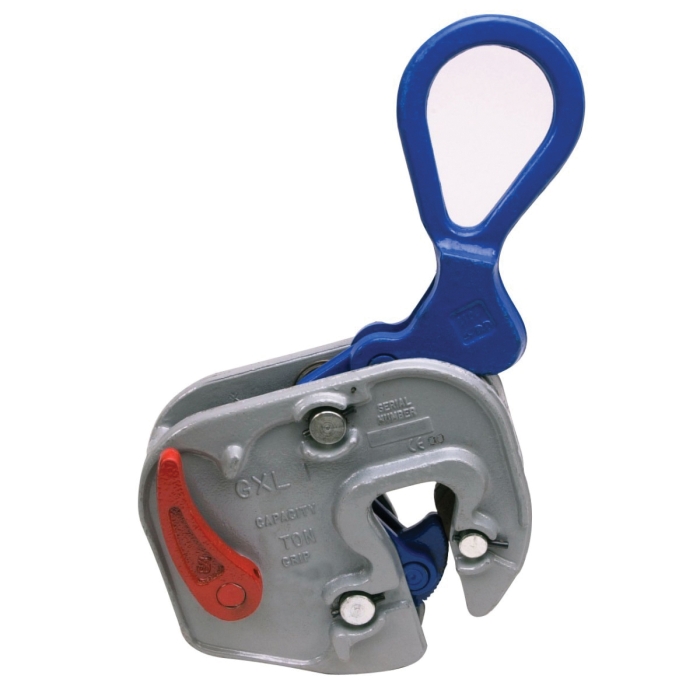

Campbell® 6422001 Drop Forged Alloy Steel GXL Plate Clamp, 1 ton, Horizontal or Vertical Lifting Point, 11-1/4 in L x 6-9/16 in W

  • Manufacturer: Apex Tool Group
  • Brand: Campbell®
  • ARGPN: 642-2001
  • MPN: 6422001
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Apex Tool Group factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Campbell® GXL Plate Clamp, Maximum Working Load: 1 ton, Lifting Point: Horizontal or Vertical, Material Construction: Drop Forged Alloy Steel, Dimensions: 11-1/4 in L x 6-9/16 in W

Dimensions      :      11-1/4 in L x 6-9/16 in W
Lifting Point      :      Horizontal or Vertical
Material      :      Alloy Steel
Material Construction      :      Drop Forged Alloy Steel
Maximum Working Load      :      1 ton
Product Type      :      Plate Clamp
  • Can be used for both vertical and horizontal to vertical lifting through 180 deg
  • Drop forged and heat treated components, with gripping surfaces of case hardened alloy steel
  • Exclusive feature is a patented wear indicator system, when any of the cam's straight line, convex teeth are flattened between unique wear indicator grooves, it is time to change the cam
  • Newly designed "cam engaging locking lever" keeps the cam in contact with the plate, the tension arm and spring mechanism facilitate attaching and removing the clamp
  • Clamps are 100% proof tested and certificate of test supplied with each clamp
  • Minimum WLL of at Least 10% of the maximum WLL
  • Made in USA
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Campbell_4403815_CAT.pdf
