Campbell Fittings GJS-12 HW GJS-12 HW

Campbell Fittings GJS-12 HW

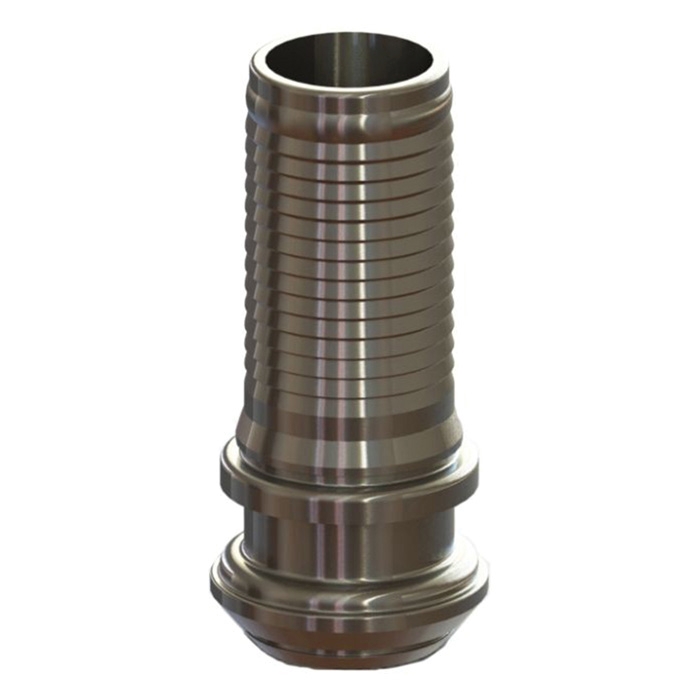

Campbell Fittings GJF Ductile Iron Heatwave Viton Seal Hose Stem, 3 in Female Ground Joint x 3 in Hose

  • Manufacturer: Ideal Clamp Products, Inc
  • Brand: Campbell Fittings
  • ARGPN: GJS-12 HW
  • MPN: GJS-12 HW
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Ideal Clamp Products, Inc factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Campbell Fittings Heatwave Viton Seal Hose Stem, Series: GJF, Connection Type 1: Ground Joint, Gender 1: Female, Connection Size 1: 3 in, Connection Type 2: Hose, Connection Size 2: 3 in, Material Construction: Ductile Iron

Connection Size 1      :      3 in
Connection Size 2      :      3 in
Connection Type 1      :      Ground Joint
Connection Type 2      :      Hose
Gender 1      :      Female
Material      :      Malleable Iron
Material Construction      :      Ductile Iron
Series      :      GJF
Shape      :      Hose Stem
  • Viton seal coupling pass 1000 hr MIL-H-29210 steam test
  • Eliminates leaks with nut hand tightened
  • Viton seal (formulated by DuPont for high-pressure steam and air applications) is protected inside machined stem groove and by swivel nut, extending working life
  • Spud does not contain plastic seat, extending working life
  • Interchangeable with old style domestic ground joint couplings
  • Machined hose ends with smooth end detail to reduce potential failure due to abrasion - grips, seals and protects hose
  • Interlock groove locks ferrule into place for superior holding power

Applications: For high-pressure steam and air
