Coilhose® PT0406-500TQ PT0406TQ

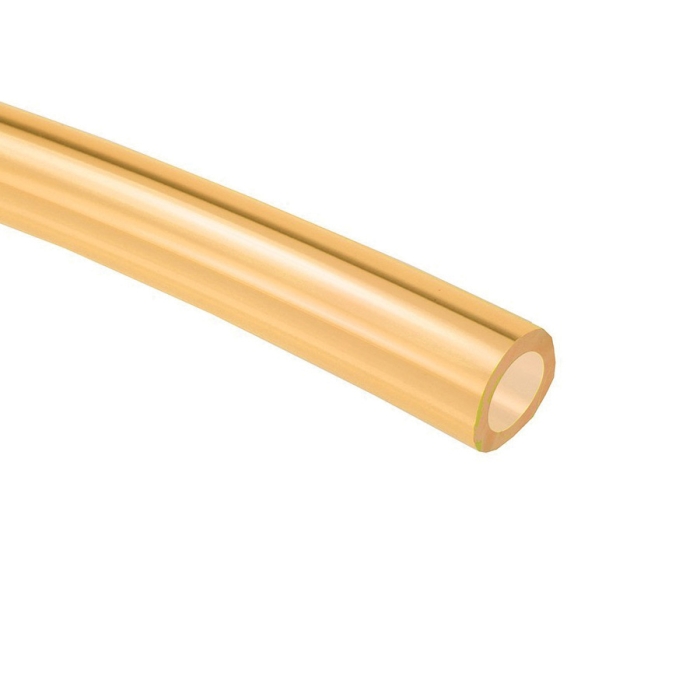

Coilhose® PT0406 Polyurethane Tubing

Coilhose® PT0406 Polyurethane Tubing is a durable, transparent orange tubing designed for industrial and pneumatic applications. Made from high-quality ether-based resin, it resists water degradation, kinking, and UV exposure. With a pressure rating of 265 psi, a 0.062-inch thick wall, and a temperature range of -40°F to 165°F, this tubing offers excellent flexibility and reliability. Compatible with Coilock push-to-connect and poly-tube fittings, it also supports a vacuum rating of up to 28 in-Hg for versatile use.

pin-int

Coilhose® Tubing, Series: PT0406, Nominal Size: 1/4 in, 1/4 in OD, 0.12 in ID, 1 ft Length, Material Construction: Polyurethane, Transparent Orange, 265 psi, 0.062 in Thick Wall, Resistance Properties: Kinking, -40 to 165 deg F

Color      :      Transparent Orange
Inside Diameter      :      0.12 in
Length      :      500 ft
Material      :      Polyurethane
Material Construction      :      Polyurethane
Nominal Size      :      1/4 in
Outside Diameter      :      1/4 in
Pressure Rating      :      265 psi
Product Type      :      Tubing
Resistance Properties      :      Kinking
Series      :      PT0406
Temperature Rating      :      -40 to 165 deg F
Wall Thickness      :      0.062 in

Coilhose® Pneumatics polyurethane is extruded from high-quality ether-based resin. This means that the tubing will not degrade over time when exposed to water. Polyurethane tubing offers increased flexibility, resistance to kinking and a broad temperature range. All our polyurethane tubing is 95A durometer and can be used with either push to connect fittings or hose barbs. Compatible with coilock push to connect fittings and poly tube fittings.

  • Up to 28 in-Hg vacuum rating
  • 3:1 safety factor
  • UV stabilized
  • 95 shore A hardness
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Coilhose_PFE60254T_CAT.pdf
