Continental 20240275 CONTI R3-12

Continental 20240275

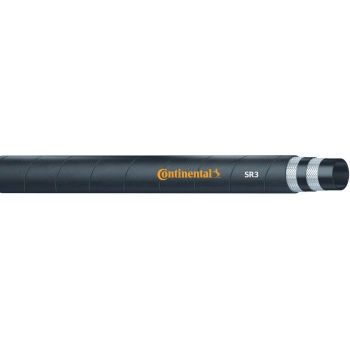

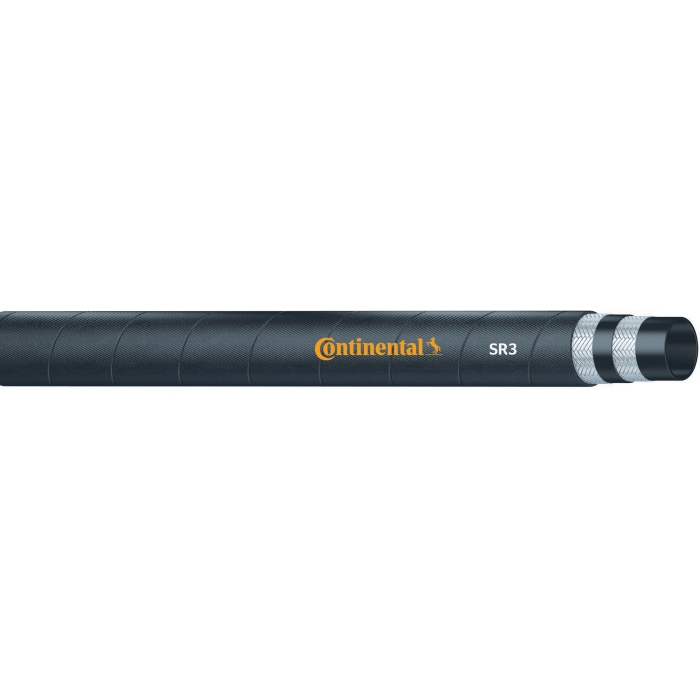

Continental 20240275 Black Nitrile Low Pressure Braided Hydraulic Hose, 3/4 in, 750 psi

pin-int

Continental Low Pressure Braided Hydraulic Hose, Series: SR3, Nominal Size: 3/4 in, 1-1/4 in OD, 3/4 in ID, 750 psi, SAE Rating: SAE 100R3, Material Construction: Nitrile, Polychloroprene Cover, Construction: 2-Textile Braid, Black, 6 in Bend Radius, -40 deg F Low, 212 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      6 in
Color      :      Black
Construction      :      2-Textile Braid
Cover Material      :      Polychloroprene
Inside Diameter      :      3/4 in
Material      :      Nitrile
Material Construction      :      Nitrile
Nominal Size      :      3/4 in
Outside Diameter      :      1-1/4 in
Pressure Rating      :      750 psi
Product Type      :      Hydraulic Hose
SAE Rating      :      SAE 100R3
Series      :      SR3
Temperature High      :      212 deg F
Temperature Low      :      -40 deg F

Applications: For low-pressure, textile reinforced hose for petroleum or water-based hydraulic fluids or pneumatic applications
