Coxreels 1185-1524

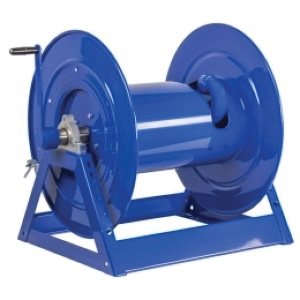

Coxreels 1185 Powder-Coated Steel Hand Crank Hose Reel, 1-1/2 in ID x 2-1/16 in OD, 75 ft L, 1500 psi
- Manufacturer: Coxreels
- Brand: Coxreels
- ARGPN: 1185-1524
- MPN: 1185-1524
-
Available for Pickup
- Anchorage, AK Branch:
Click here
-
Available for Shipping:
-
Available for Coxreels factory-direct delivery:
-
Coxreels Hand Crank Hose Reel, Series: 1185, 75 ft Length Hose, 1-1/2 in Hose Inside Diameter, 2-1/16 in Hose Outside Diameter, Connection Type: FPT, Inlet Size: 1-1/2 in, Outlet Size: 1-1/2 in, Material Construction: Steel, Finish: Powder-Coated, Blue, Wall Mount, -40 to 250 deg F, 1500 psi, Dimensions: 24 in L x 29 in W x 26 in H
California residents see Prop 65 WARNINGS
| Color | : | Blue |
| Connection Type | : | FPT |
| Dimensions | : | 24 in L x 29 in W x 26 in H |
| Finish | : | Powder-Coated |
| Hose Inside Diameter | : | 1-1/2 in |
| Hose Length | : | 75 ft |
| Hose Outside Diameter | : | 2-1/16 in |
| Inlet Size | : | 1-1/2 in |
| Material | : | Steel |
| Material Construction | : | Steel |
| Mounting Type | : | Wall |
| Outlet Size | : | 1-1/2 in |
| Pressure Rating | : | 1500 psi |
| Product Type | : | Hose Reel |
| Series | : | 1185 |
| Temperature Rating | : | -40 to 250 deg F |
Coxreels 1185 Series hand crank hose reels are designed to handle long lengths of large diameter hose for increased volume delivery. Coxreels exclusive low-profile outlet riser and open drum design provide a non-crimping, flat smooth hose wrap. The sturdy all welded "A" frame base provides exceptional strength to handle the extra weight without sacrificing performance, even in demanding mobile applications.
- External fluid path with in-line aluminum straight, full flow NPT swivel inlet
- Exclusive low-profile outlet riser and open drum slot design for flat smooth hose wrap
- Robust lubricated horizontal surface mount bearings for easy rotation
- Long handled locking pin to secure reel from rotation during transport or storage
- Solid steel direct hand crank with smooth round handle
- Professional-grade heavy-duty steel construction
- Rolled edges and ribbed discs provide strength and safety
- In-line electroless nickel-plated steel full-flow NPT swivel for simple seal maintenance and fast and easy hose installation
- Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
- Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap
- Sturdy one-piece, all CNC robotically welded 12 ga steel "A" frame base, not bolted, for superior reel structure
- Mounting pattern located in the steel base for easy reel installation and detachment
- Long-lasting, chip-resistant and rust inhibiting CPC powder coat finish, long handled locking pin to secure reel and front bevel geared crank for easy mechanical retraction
- Made in USA
Warranty: 2 Years
Applications: Bulk liquid handling, chemical fluid transfer, fire booster, flue delivery, high-flow watering, hydro seeding and oil/lubrication
