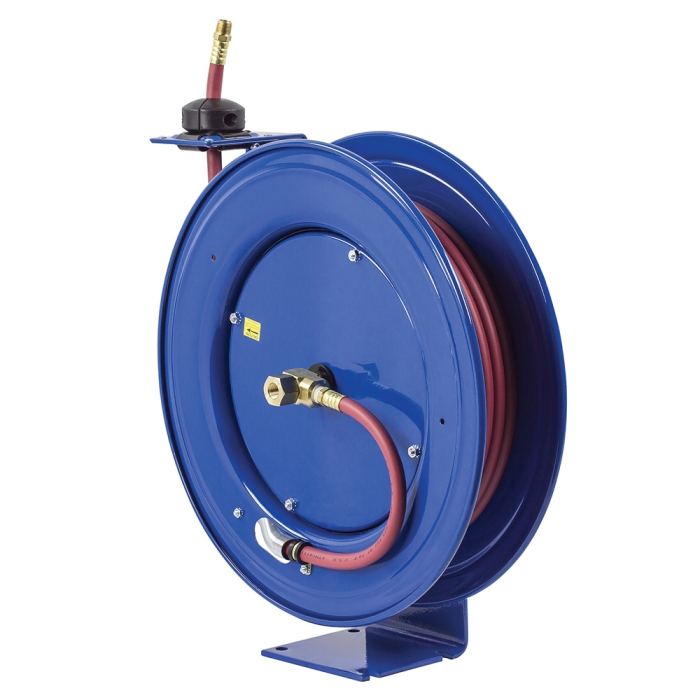

Coxreels SH-N-450

Coxreels Super Hub™ Hose Reel, Series: SH, 50 ft Length Hose, 1/2 in Hose Inside Diameter, 3/4 in Hose Outside Diameter, Winding Method: Spring Driven, Material Construction: Steel, Finish: Powder-Coated, Blue, Ceiling, Floor, Vehicle, Wall Mount, 300 psi, Dimensions: 19-1/2 in L x 8-1/4 in W x 21-1/4 in H, Includes: Hose

California residents see Prop 65 WARNINGS

Coxreels SH Series Super Hub™ spring driven hose reels, like the P Series, have a long history of dependable performance. The larger chassis and frame accommodate longer lengths and larger diameters of hose. Coxreels original Super Hub™ dual axle support system increases the stability during operation, reduces vibration and strengthens the structural integrity of the reel.

• External fluid path with machined from solid brass 90 deg full-flow NPT swivel inlet
• Guide arm adjusts to wall, floor, vehicle and overhead positions
• 1 in solid steel axle and lubricated precision bearings for smooth rotation
• Enclosed factory tuned and matched cartridge-style spring motor
• Non-corrosive stainless steel spring, pawl and zinc-plated ratchet
• Multi-position lock ratchet mechanism secures hose at desired length
• Machined from solid brass 90 deg full flow NPT swivel for simple seal maintenance, fast and easy hose installation
• Lubricated and enclosed cartridge style motor is easily removable for safe and convenient maintenance
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
• Sturdy single pedestal design with solid one-piece steel base and support post, no weld, for maximum stability
• Exclusive Super Hub™ dual axle support system
• Versatile guide arm adjusts to wall, floor, ceiling and vehicle-mounting positions
• Long-lasting, chip-resistant and rust inhibiting CPC powder coat finish
• Adjustable solid rubber hose stop and sturdy permanently lubricated precision bearings
• Made in USA

Warranty: 2 Years

Applications: Air, chemical fluid transfer, grease/hydraulics, oil/lubrication, pavement, pressure washing, wash down and water

• Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Coxreels_11254100_CAT.pdf
