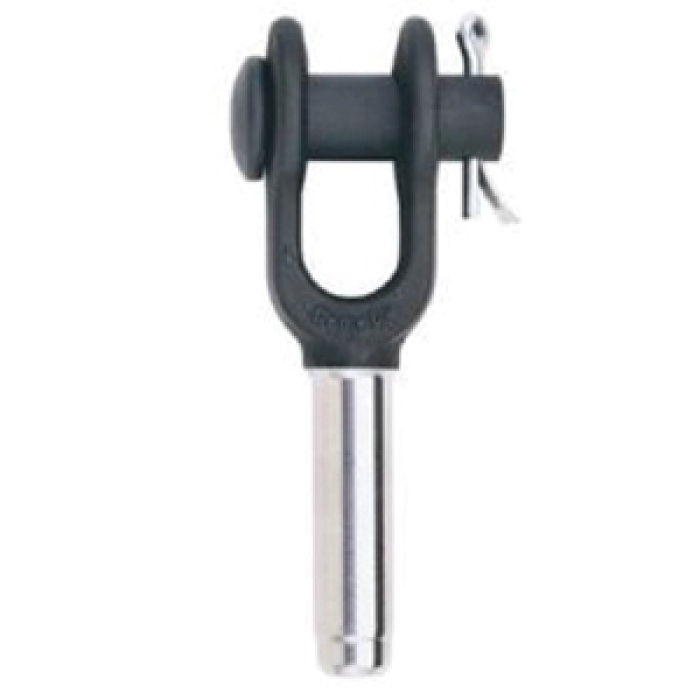

Crosby© National S-501 Carbon Steel Open Swage Socket, 1/2 in

  • Manufacturer: Crosby Group
  • Brand: National
  • ARGPN: 1039101
  • MPN: 1039101
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Crosby Group factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Crosby© National Open Swage Socket, Series: S-501, 1/2 in Cable, 0.91 in After Swage Diameter, 1 in Eye Inside Diameter, Material Construction: Carbon Steel, 7.82 in Length, 2 in Width, For Use With: 6 x 19 or 6 x 37, IPS or XIP (EIP), XXIP (EEIP), RRL, FC or IWRC Wire Rope

After Swage Diameter      :      0.91 in
Cable Size      :      1/2 in
Eye Inside Diameter      :      1 in
For Use With      :      6 x 19 or 6 x 37, IPS or XIP (EIP), XXIP (EEIP), RRL, FC or IWRC Wire Rope
Length      :      7.82 in
Material      :      Steel
Material Construction      :      Carbon Steel
Product Type      :      Swage Socket
Series      :      S-501
Width      :      2 in
  • Forged from special bar quality carbon steel
  • Swage socket terminations have an efficiency rating of 100%, based on the catalog strength of wire rope
  • Hardness controlled by spheroidize annealing
  • Stamp for identification after swaging without concern for fractures
  • Swage sockets incorporate a reduced machined area of the shank which is equivalent to the proper "After Swage" dimension
  • Before swaging, this provides for an obvious visual difference in the shank diameter
  • After swaging, a uniform shank diameter is created allowing for a Quic-Check® and permanent visual inspection opportunity
  • Designed to quickly determine whether the socket has been through the swaging operation and assist in field inspections

Applications: For use in cold forming

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Crosby_1004331_CAT.pdf
  • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/National_1039067_SS.pdf
  • Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/National_1039101_II.pdf
