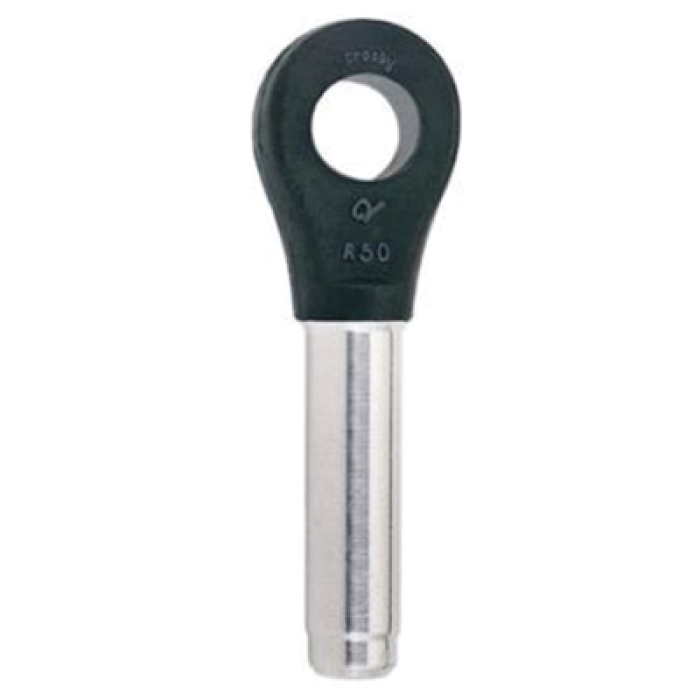

Crosby© National S-502 Carbon Steel Closed Swage Socket, 1-1/8 in

  • Manufacturer: Crosby Group
  • Brand: National
  • ARGPN: 1039520
  • MPN: 1039520
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Crosby Group factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Crosby© National Closed Swage Socket, Series: S-502, 1-1/8 in Cable, 2.05 in After Swage Diameter, 2.37 in Eye Inside Diameter, Material Construction: Carbon Steel, 15.03 in Length, 4 in Width, For Use With: 6 x 19 or 6 x 36, IPS or XIP (EIP), XXIP (EEIP), RRL, FC or IWRC Wire Rope

After Swage Diameter      :      2.05 in
Cable Size      :      1-1/8 in
Eye Inside Diameter      :      2.37 in
For Use With      :      6 x 19 or 6 x 36, IPS or XIP (EIP), XXIP (EEIP), RRL, FC or IWRC Wire Rope
Length      :      15.03 in
Material      :      Steel
Material Construction      :      Carbon Steel
Product Type      :      Swage Socket
Series      :      S-502
Width      :      4 in
  • Forged from special bar quality carbon steel
  • Swage socket terminations have an efficiency rating of 100%, based on the catalog strength of wire rope
  • Hardness controlled by spheroidize annealing
  • Stamp for identification after swaging without concern for fractures
  • Swage sockets incorporate a reduced machined area of the shank which is equivalent to the proper "After Swage" dimension
  • Before swaging, this provides for an obvious visual difference in the shank diameter
  • After swaging, a uniform shank diameter is created allowing for a Quic-Check® and permanent visual inspection opportunity
  • Designed to quickly determine whether the socket has been through the swaging operation and assist in field inspections

Applications: For use in cold forming

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Crosby_1004331_CAT.pdf
  • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/National_1039441_SS.pdf
  • Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/National_1039520_II.pdf
