Crosby® 1016148 1016148

Crosby® 1016148

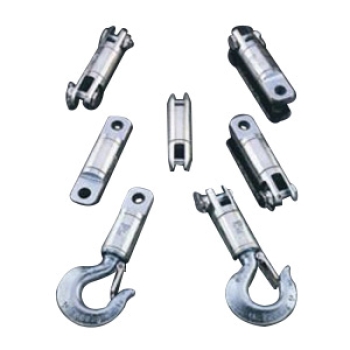

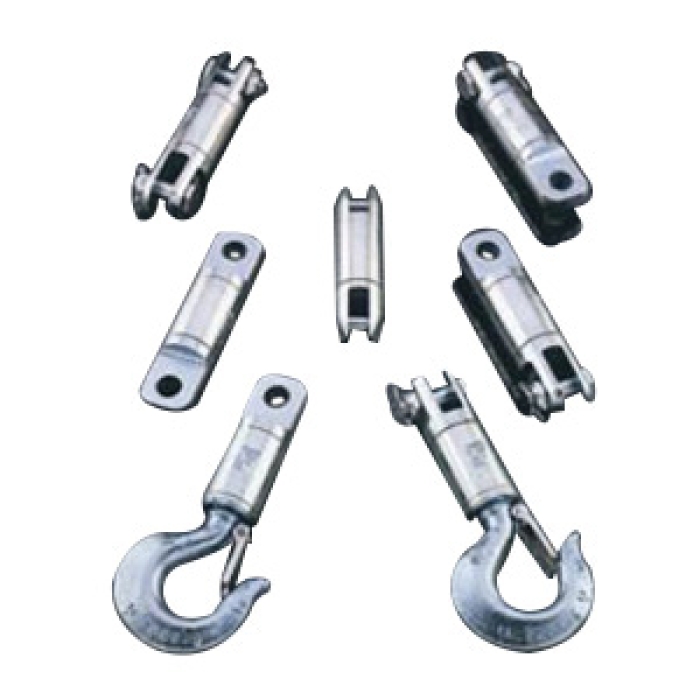

Crosby® AS-2 Zinc-Plated Jaw x Jaw Angular Contact Bearing Swivel, 3/4 in, 8.5 ton

  • Manufacturer: Crosby Group
  • Brand: Crosby®
  • ARGPN: 1016148
  • MPN: 1016148
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Crosby Group factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Crosby® Jaw x Jaw Angular Contact Bearing Swivel, Series: AS-2, Size: 3/4 in, Working Load Limit: 8.5 ton, 3 in Width Eye, Width Between Eyes: 9.63 in, Dimensions: 12.31 in H x 3 in W, Finish: Zinc-Plated

Dimensions      :      12.31 in H x 3 in W
Eye Width      :      3 in
Finish      :      Zinc-Plated
Product Type      :      Bearing Swivel
Series      :      AS-2
Size      :      3/4 in
Width Between Eyes      :      9.63 in
Working Load Limit      :      8.5 ton
  • Individually-proof tested to 2 times the working load limit with certification
  • Design factor 5 to 1
  • Entire swivel is zinc-plated to resist-corrosion
  • Angular contact bearings maximize efficiency, reliability and service life of swivel and extend the life of the wire rope
  • Hook models utilize genuine Crosby® hooks which are forged alloy steel, quenched and tempered and contain patented Quic-Check® markings
  • Ultimate load is 5 times the working load limit
  • Individually-proof tested to 2 times the working load limit
  • Load-rated

Applications: Designed for high rotation speed - lower torque required to initiate rotation
