Crosby® 1021343 1021343

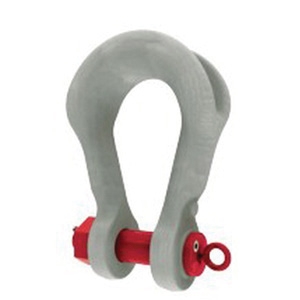

Crosby® G-2160 Painted Red Hot Dipped Galvanized Forged Alloy Steel Wide Body Shackle

Crosby® G-2160 Wide Body Shackle, Hot-Dipped Galvanized, Painted Red, Forged Alloy Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Crosby® Wide Body Shackle, Series: G-2160, Load Capacity: 500 ton, Size: 14.8 in, 7.09 in Pin Diameter, Inside Length: 24.81 in, 9.84 in Opening, Eye Outer Size: 13.39 in, Material Construction: Forged Alloy Steel, Finish: Hot-Dipped Galvanized, Painted Red, 42.72 in Length, 33.35 in Width

    Color      :      Painted Red
    Eye Outer Size      :      13.39 in
    Finish      :      Hot-Dipped Galvanized
    Inside Length      :      24.81 in
    Length      :      42.72 in
    Load Capacity      :      500 ton
    Material      :      Steel
    Material Construction      :      Forged Alloy Steel
    Opening Size      :      9.84 in
    Pin Diameter      :      7.09 in
    Product Type      :      Wide Body Shackle
    Series      :      G-2160
    Size      :      14.8 in
    Width      :      33.35 in
    • All sizes quenched and tempered for maximum strength
    • All ratings are in metric tons, embossed on side of bow
    • Increase in shackle bow radius provides minimum 58% gain in sling bearing surface and eliminates need for a thimble
    • Increases usable sling strength minimum of 15% and greatly improves life of wire rope slings
    • Approved for use at -40 to 204 deg C
    • Bow and bolt are certified to meet charpy impact testing of 42 J (31 f lbf) min avg at -20 deg C
    • All 2160 shackles are individually proof tested and magnetic particle inspected
    • Look for the Red Pin® the mark of genuine Crosby® quality
    • Load-rated
    • Quic-Check®
    • TA type approved

    Applications: For connecting synthetic web slings, synthetic round slings or wire rope slings
