Crosby® 1040037 1040037

Crosby® 1040037

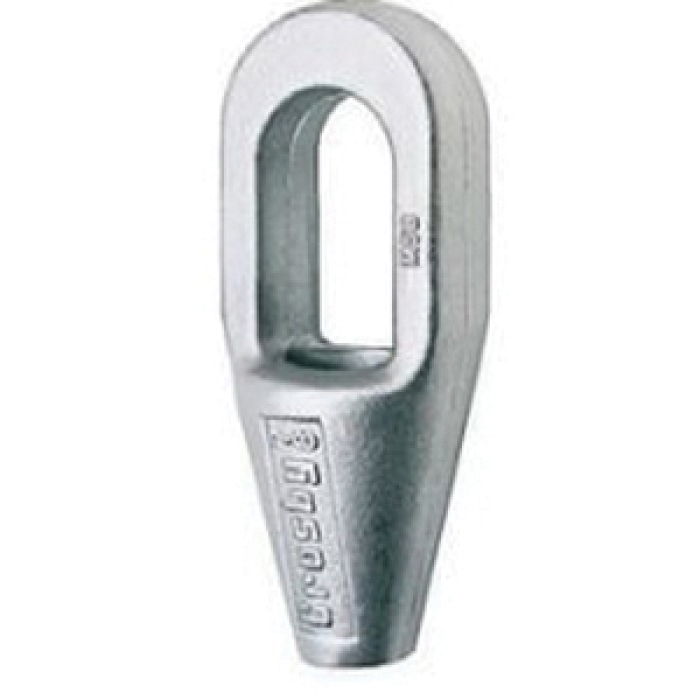

Crosby® G-417 Galvanized Forged Steel Closed Spelter Socket, 1-1/8 in

  • Manufacturer: Crosby Group
  • Brand: Crosby®
  • ARGPN: 1040037
  • MPN: 1040037
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Crosby Group factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Crosby® Closed Spelter Socket, Series: G-417, 1-1/8 in Cable, 2.56 in Eye Inside Diameter, Load Capacity: 100 ton, Material Construction: Forged Steel, Finish: Galvanized, 11 in Length, 4.13 in Width, For Use With: 6 x 7, 6 x 19 or 6 x 36, IPS or XIP (EIP), XXIP (EEIP), RRL, FC or IWRC Wire Rope

Cable Size      :      1-1/8 in
Eye Inside Diameter      :      2.56 in
Finish      :      Galvanized
For Use With      :      6 x 7, 6 x 19 or 6 x 36, IPS or XIP (EIP), XXIP (EEIP), RRL, FC or IWRC Wire Rope
Length      :      11 in
Load Capacity      :      100 ton
Material      :      Steel
Material Construction      :      Forged Steel
Product Type      :      Spelter Socket
Series      :      G-417
Width      :      4.13 in
  • Spelter socket terminations have an efficiency rating of 100%, based on the catalog strength of wire rope
  • Strand constructed with minimal number of wires (1 x 7) requires special consideration that socket basket length be five-times the strand diameter or 50-times the wire diameter, whichever is the greater
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Crosby_1004331_CAT.pdf
  • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/McKissick_1039977_SS.pdf
  • Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/McKissick_1040037_II.pdf
