Crosby® 1016644 1016644

Crosby® 1016644

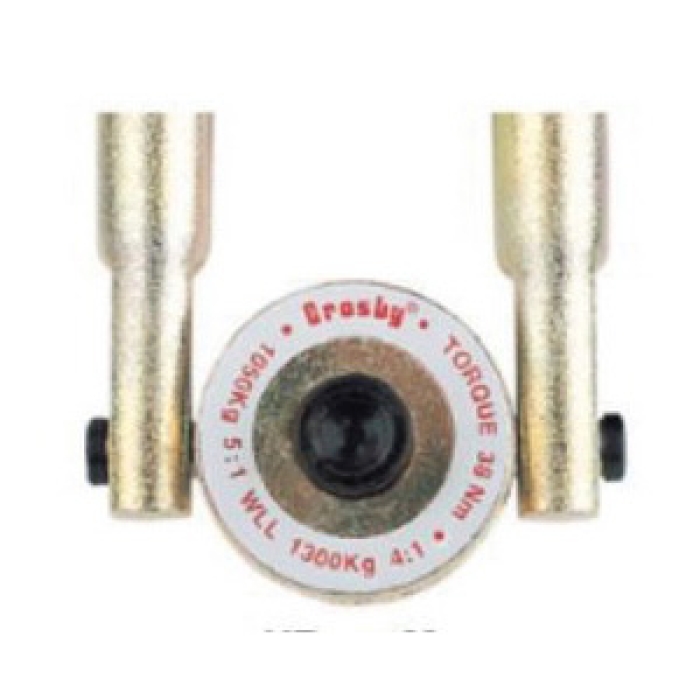

Crosby® HR-125M UNC Metric Hoist Ring, 31.9 mm, 2150 lb

  • Manufacturer: Crosby Group
  • Brand: Crosby®
  • ARGPN: 1016644
  • MPN: 1016644
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Crosby Group factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Crosby® UNC Metric Hoist Ring, Series: HR-125M, 31.9 mm Thread, Load Capacity: 2150 lb, 52.3 mm Inside Height, Inside Width: 49.8 mm, 123 mm Outside Height, 85.1 mm Width Outside, 17.5 mm Bail Diameter, Swivel Angle: 360 deg, Pivot: 180 deg, Torque Rating: 136 N-m

Bail Diameter      :      17.5 mm
Inside Height      :      52.3 mm
Inside Width      :      49.8 mm
Load Capacity      :      2150 lb
Outside Height      :      123 mm
Outside Width      :      85.1 mm
Pivot      :      180 deg
Product Type      :      Hoist Ring
Series      :      HR-125M
Swivel Angle      :      360 deg
Thread Size      :      31.9 mm
Torque Rating      :      136 N-m
  • The working load limit and recommended torque value are permanently stamped into each washer
  • Washer is color-coded for easy identification
  • Individually-proof tested to 2-1/2 times working load limit
  • Frame 2 and larger are RFID equipped
  • Design factor 5 to 1
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Crosby_1016644_SS_NEW2021.pdf
