Crosby® 1045913

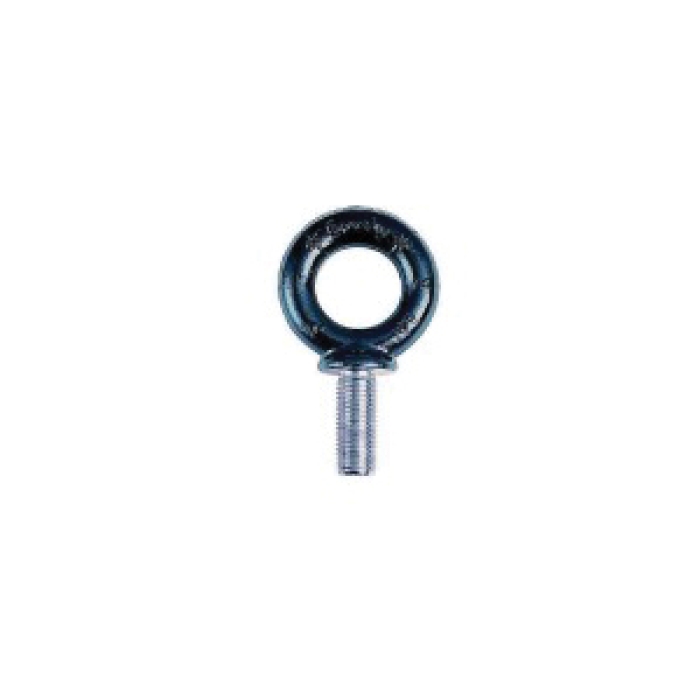

Crosby® M-279 Forged Steel Machinery Shoulder Eye Bolt, M16 x 27 mm, 1800 kg

  • Manufacturer: Crosby Group
  • Brand: Crosby®
  • ARGPN: 1045913
  • MPN: 1045913
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Crosby Group factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Crosby® Machinery Shoulder Eye Bolt, Series: M-279, M16 x 27 Thread, 35.1 mm ID x 60.5 mm OD Eye Diameter, Load Capacity: 1800 kg, Dimensions: 96 mm L

Dimensions      :      96 mm L
Eye Diameter      :      35.1 mm ID x 60.5 mm OD
Load Capacity      :      1800 kg
Material      :      Steel
Material Construction      :      Forged Steel
Product Type      :      Eye Bolt
Series      :      M-279
Thread Size      :      M16 x 27
  • Forged steel, quenched and tempered
  • Fatigue-rated at 1-1/2 times the working load limit at 20000 cycles
  • Recommended for in-line pull
  • Metric threaded
  • Quic-Check®
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Crosby_1045753_CAT_NEW2021.pdf
