CSI R509-10X10 R509-10X10

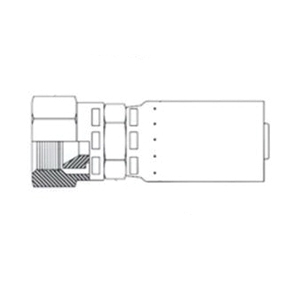

CSI R5 Series Trivalent Zinc-Plated Female 37 deg JIC Swivel Crimp Straight Hose Fitting

CSI R5 Series Trivalent Zinc-Plated Female 37 deg JIC Swivel Crimp Straight Hose Fitting, 1/2 in x 5/8 in

  • Add to cart
    Add To Favorites
    • pin-int

    CSI Crimp Straight Hose Fitting, Series: R5, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 5/8 in, Nominal Size: 5/8 in, Thread Size 2: 7/8-14, Hex Size: 7/8 x 1 in, Finish: Trivalent Zinc-Plated, For Use With: 100R5 58 MBA and HTR5 Hi-Temp R5 Textile Cover Hoses, Packaging Quantity: 10 PK

    Connection Size 1      :      1/2 in
    Connection Size 2      :      5/8 in
    Connection Type      :      Hose~JIC Female Swivel
    Connection Type 1      :      Hose
    Connection Type 2      :      37 deg JIC Swivel
    Finish      :      Trivalent Zinc-Plated
    Fitting Type      :      Straight Hose Fitting
    For Use With      :      100R5 58 MBA and HTR5 Hi-Temp R5 Textile Cover Hoses
    Gender 2      :      Female
    Hex Size      :      7/8 x 1 in
    Hose Dash Size      :      08
    Nominal Size      :      5/8 in
    Packaging Quantity      :      10 PK
    Series      :      R5
    Shape      :      Straight
    Thread Size 2      :      7/8-14

    Hydraulic hose ends for 100R5 textile cover hose (58 MBA and HTR5 hi-temp R5). The R5 Series couplings are compatible with virtually all crimp machines and can be crimped with a standard straight crimp or bubble crimp.

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/CSI_R5208X8_CAT.pdf
