CSI R526-10X10 R526-10X10

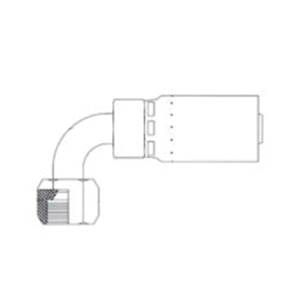

CSI R5 Series Trivalent Zinc-Plated Female SAE 45 deg/37 deg JIC Swivel Crimp Hose 90 deg Elbow

CSI R5 Series Trivalent Zinc-Plated Female SAE 45 deg/37 deg JIC Swivel Crimp Hose 90 deg Elbow, 1/2 in x 5/8 in

pin-int

CSI Crimp Hose 90 deg Elbow, Series: R5, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: SAE 45 deg/37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 5/8 in, Nominal Size: 5/8 in, Thread Size 2: 7/8-14, Hex Size: 1 in, Finish: Trivalent Zinc-Plated, For Use With: 100R5 58 MBA and HTR5 Hi-Temp R5 Textile Cover Hoses, Packaging Quantity: 10 PK

Connection Size 1      :      1/2 in
Connection Size 2      :      5/8 in
Connection Type      :      Hose~JIC Female Swivel
Connection Type 1      :      Hose
Connection Type 2      :      SAE 45 deg/37 deg JIC Swivel
Finish      :      Trivalent Zinc-Plated
Fitting Type      :      90 deg Elbow
For Use With      :      100R5 58 MBA and HTR5 Hi-Temp R5 Textile Cover Hoses
Gender 2      :      Female
Hex Size      :      1 in
Hose Dash Size      :      08
Nominal Size      :      5/8 in
Packaging Quantity      :      10 PK
Series      :      R5
Shape      :      90 deg Elbow
Thread Size 2      :      7/8-14

Hydraulic hose ends for 100R5 textile cover hose (58 MBA and HTR5 hi-temp R5). The R5 Series couplings are compatible with virtually all crimp machines and can be crimped with a standard straight crimp or bubble crimp.

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/CSI_R5208X8_CAT.pdf
