Boston® EHA500-24YW-100 EHA500-24YW-100

Boston® EHA500-24YW-100

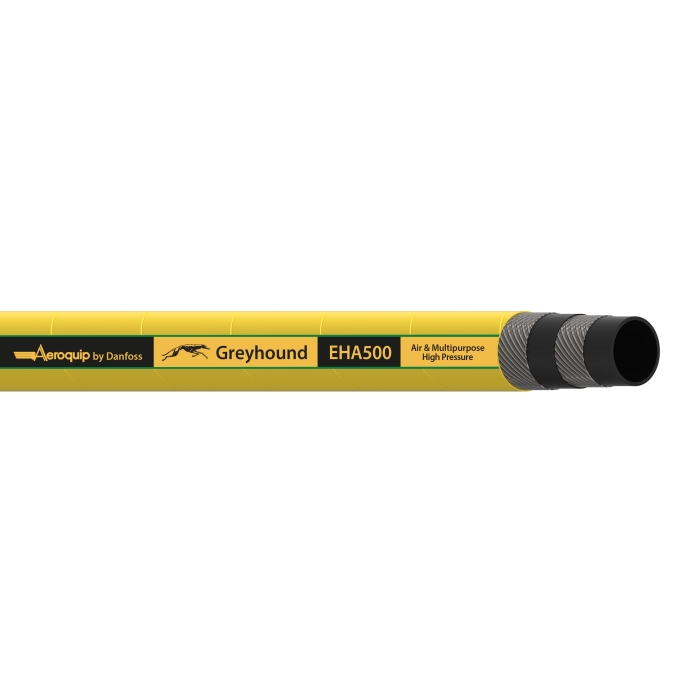

Danfoss EHA500 Yellow Nitrile High-Pressure Air Hose, 1-1/2 in, 1 ft L, 600 psi

pin-int

Danfoss High-Pressure Air Hose, Series: EHA500, Nominal Size: 1-1/2 in, Dash Size: 24, 1.97 in OD, 1-1/2 in ID, 0.188 in Thick Wall, 1 ft Length, 600 psi, Material Construction: Nitrile, Pin-Pricked Synthetic Rubber Cover, Construction: High-Tensile Steel Wire, Yellow, 7.48 in Bend Radius, Resistance Properties: Abrasion, Oil, Ozone, Weather, -40 deg F Low, 200 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      7.48 in
Color      :      Yellow
Construction      :      High-Tensile Steel Wire
Cover Material      :      Pin-Pricked Synthetic Rubber
Dash Size      :      24
Inside Diameter      :      1-1/2 in
Length      :      100 ft
Material      :      Nitrile
Material Construction      :      Nitrile
Nominal Size      :      1-1/2 in
Outside Diameter      :      1.97 in
Pressure Rating      :      600 psi
Product Type      :      Air Hose
Resistance Properties      :      Abrasion, Oil, Ozone, Weather
Series      :      EHA500
Temperature High      :      200 deg F
Temperature Low      :      -40 deg F
Wall Thickness      :      0.188 in

Applications: For high-pressure air service

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_EHA500-08YW-100_CAT.pdf
  • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_EHA500-08YW-100_SS.pdf
