Boston® EHP150-12BK-100 EHP150-12BK-100

Boston® EHP150-12BK-100

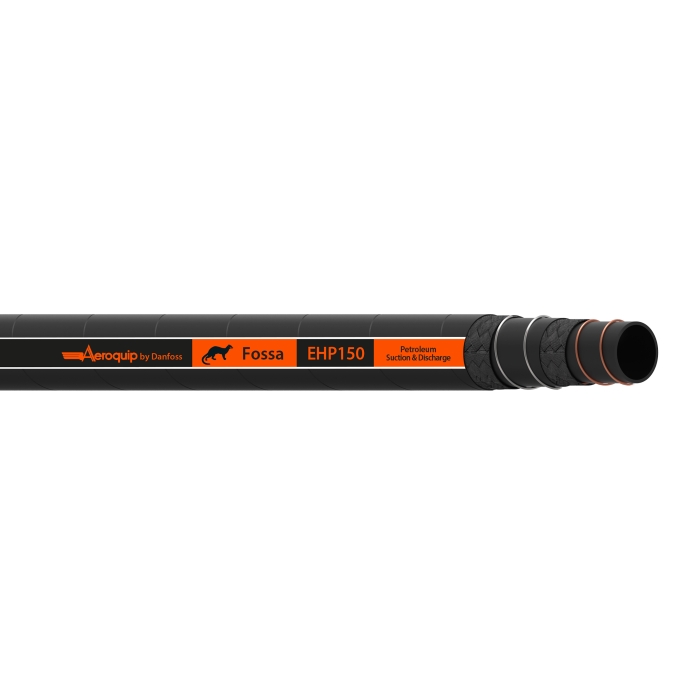

Danfoss EHP150 Black NBR Petroleum Suction and Discharge Hose, 3/4 in, 1 ft L, 150 psi

pin-int

Danfoss Petroleum Suction and Discharge Hose, Series: EHP150, Nominal Size: 3/4 in, 1.2 in OD, 3/4 in ID, 1 ft Length, 150 psi, Material Construction: NBR, Pin-Pricked Neoprene Blend Cover, Construction: High-Tensile Synthetic Textile with Helical Wire and Anti-Static Copper Wire, Black, 3.54 in Bend Radius, Resistance Properties: Abrasion, Weather, -22 deg F Low, 158 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      3.54 in
Color      :      Black
Construction      :      High-Tensile Synthetic Textile with Helical Wire and Anti-Static Copper Wire
Cover Material      :      Pin-Pricked Neoprene Blend
Inside Diameter      :      3/4 in
Length      :      100 ft
Material      :      Nitrile
Material Construction      :      NBR
Nominal Size      :      3/4 in
Outside Diameter      :      1.2 in
Pressure Rating      :      150 psi
Product Type      :      Suction and Discharge Hose
Resistance Properties      :      Abrasion, Weather
Series      :      EHP150
Temperature High      :      158 deg F
Temperature Low      :      -22 deg F
  • Oil-resistant nitrile blend tube
  • 3:1 safety factor
  • Embossed layline style

Applications: For suction and discharge of petroleum products, for use with petroleum products with aromatic content up to 50%, petroleum industry, paper/pulp industry, oil and gas exploration, ship building, tank trucks, waste hauling and batch plants

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Eaton_EHW028-16-100_CAT.pdf
