Boston® GH001-12 GH001-12

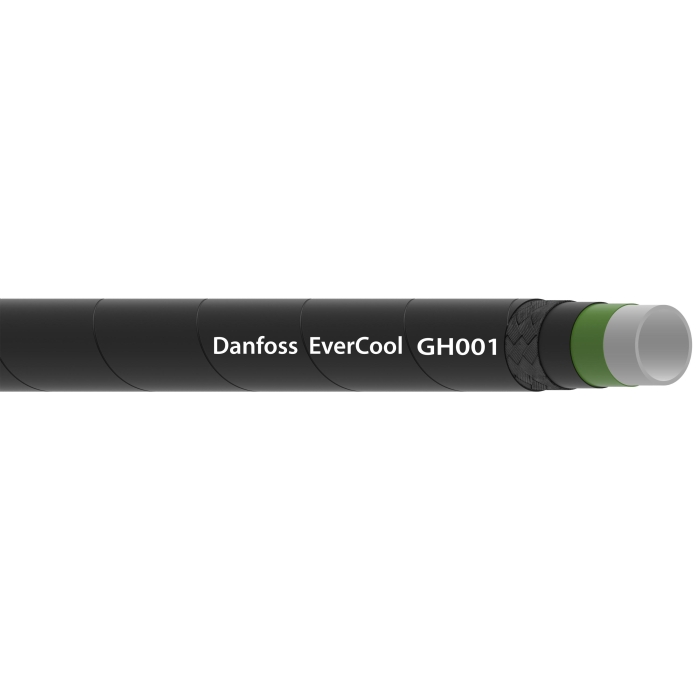

Danfoss Evercool™ GH001 Black Polyamide A/C Multi-Refrigerant Hose

The Danfoss Evercool™ A/C Hose is designed for manufacturers aiming to reduce vehicle GHG emissions. This premium hose offers longer life, greater temperature-resistance, and better kink-resistance. Featuring new dual extrusion technology for a SAE J2064 Type E Veneer tube, the GH001 construct offers exceptional flexibility, temperature performance, and value. It is compatible with Eaton's Crimp fitting and Patented E-Z Clip(TM) fitting systems, ensuring easy replacement. Additionally, the hose provides excellent heat, oil, and refrigerant compatibility, with a maximum kink-resistance and qualification at full vacuum, making it an excellent choice for truck, bus, construction air-conditioning, and refrigeration systems.

pin-int

Danfoss Evercool™ A/C Multi-Refrigerant Hose, Series: GH001, Nominal Size: 0.65 in, Dash Size: 12, 0.99 in OD, 0.65 in ID, 0.35 in Thick Wall, 1 ft Length, 5000 psi, SAE Rating: SAE J2064, Material Construction: Polyamide, EPDM Cover, Construction: 1-Ply Textile Braid, Black, 4 in Bend Radius, Resistance Properties: Abrasion, Kink, Ozone, UV, -40 deg F Low, 284 deg F High, For Use With: R134a, R1234yf, R407C, R404A, R12 and EZ CLP

Attribute Type Configurator      :      Parent
Bend Radius      :      4 in
Color      :      Black
Construction      :      1-Ply Textile Braid
Cover Material      :      EPDM
Dash Size      :      12
For Use With      :      R134a, R1234yf, R407C, R404A, R12 and EZ CLP
Inside Diameter      :      0.65 in
Length      :      50 ft
Material      :      Polyamide
Material Construction      :      Polyamide
Nominal Size      :      0.65 in
Outside Diameter      :      0.99 in
Pressure Rating      :      5000 psi
Product Type      :      Multi-Refrigerant Hose
Resistance Properties      :      Abrasion, Kink, Ozone, UV
SAE Rating      :      SAE J2064
Series      :      GH001
Sub Brand      :      Evercool™
Temperature High      :      284 deg F
Temperature Low      :      -40 deg F
Wall Thickness      :      0.35 in
GH001 EverCool™ A/C Hose is a premium choice for manufacturers helping to achieve total vehicle GHG reductions. While GH001 EverCool™ A/C Hose delivers longer life, greater temperature-resistance and better kink-resistance than its predecessors, it is fully compatible with Danfoss's Crimp fitting and Patented E-Z Clip(TM) fitting systems. This means replacing GH134 with the next generation of mobile A/C hose is not only sustainable, it's simple. New dual extrusion technology for a SAE J2064 Type E Veneer tube, offering excellent oil and refrigerant compatibility The GH001 construct offers exceptional flexibility, temperature performance and value Excellent heat resistance and offering a higher functional temperature range than traditional type C or E hoses Easy-to-install, significant reduction in potential hose damage GH001 has maximum kink-resistance and is qualified at full vacuum Applications: For truck, bus, construction air-conditioning and refrigeration systems
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_GH001-10WR50_SS_NEW2021.pdf

Complete Your Assembly
