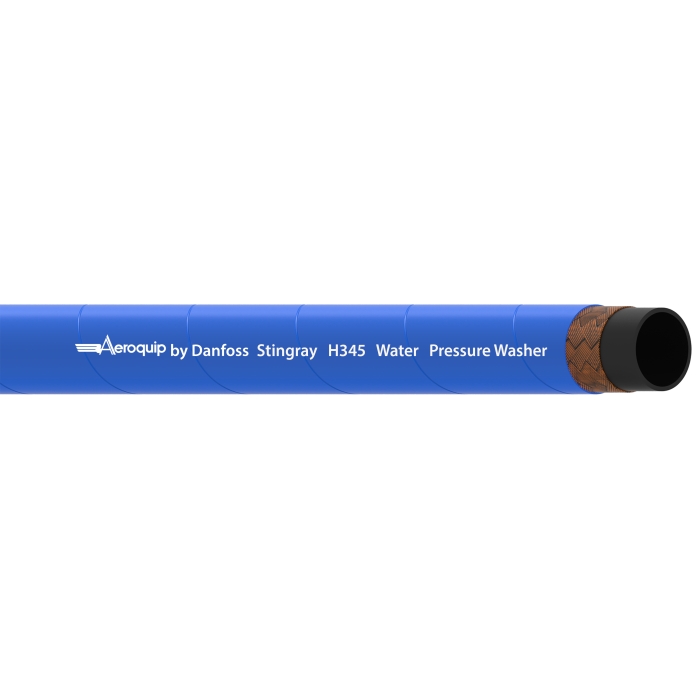

Danfoss H345 Vinyl Nitrile High-Pressure Washer Hose
Danfoss H345 High-Pressure Washer Hose is designed for demanding applications, offering superior durability and performance. Featuring a 1-wire braid steel construction with an oil-resistant nitrile RMA Class A tube, this hose operates at pressures up to 3000 psi and temperatures from 0°F to 200°F. The blue nitrile cover ensures resistance to oils and harsh environments, while the compact 2-inch bend radius enhances flexibility. Ideal for cold and hot water pressure washing in agriculture, construction, food processing, marine, mining, oil and gas exploration, and general industry.
-
ARGPN: H34504-500R
-
-
Nominal Size:
-
Nominal Size:
-
Available for Pickup
- Anchorage, AK Branch:
Click here
-
Available for Shipping:
-
Available for Danfoss Power Solutions factory-direct delivery:
Danfoss High-Pressure Washer Hose, Series: H345, Nominal Size: 1/4 in, Dash Size: 04, 0.48 in OD, 1/4 in ID, 1/8 in Thick Wall, 1 ft Length, 3000 psi, Material Construction: Vinyl Nitrile, Nitrile Cover, Construction: 1-Wire Braid Steel, Blue, 2 in Bend Radius, Resistance Properties: Oil, 0 deg F Low, 200 deg F High
| Attribute Type Configurator | : | Parent |
| Bend Radius | : | 2 in |
| Color | : | Blue |
| Construction | : | 1-Wire Braid Steel |
| Cover Material | : | Nitrile |
| Dash Size | : | 04 |
| Inside Diameter | : | 1/4 in |
| Length | : | 500 ft |
| Material | : | Nitrile |
| Material Construction | : | Vinyl Nitrile |
| Nominal Size | : | 1/4 in |
| Outside Diameter | : | 0.48 in |
| Pressure Rating | : | 3000 psi |
| Product Type | : | Washer Hose |
| Resistance Properties | : | Oil |
| Series | : | H345 |
| Temperature High | : | 200 deg F |
| Temperature Low | : | 0 deg F |
| Wall Thickness | : | 1/8 in |
- Ink jet layline style
- 150000 cycles impulse cycle life
- Oil-resistant nitrile RMA class A tube
Applications: Pressure washer hose for cold and hot water for agriculture, construction, food, marine, mining, oil and gas exploration, general industry
