Danfoss ML4MQBS37MBS

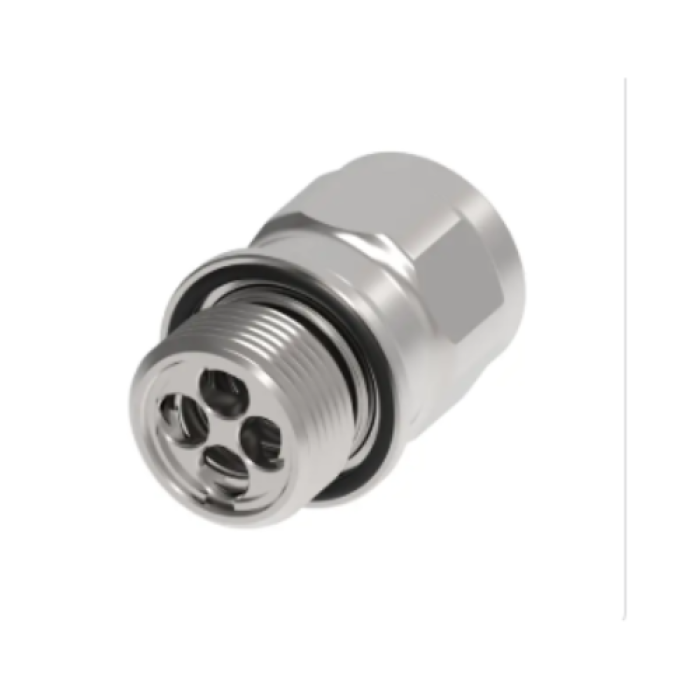

Danfoss Hansen® MQDB Series ML4MQBS37MBS Straight Blind-Mate Coupling Socket, 1/4 in Quick Disconnect x 3/8 in Male BSPP, 304 Stainless Steel
- Manufacturer: Danfoss
- Brand: Danfoss
- ARGPN: 11345082
- MPN: ML4MQBS37MBS
-
Available for Pickup
- Anchorage, AK Branch:
Click here
-
Available for Shipping:
-
Available for Danfoss factory-direct delivery:
-
Hot-swap cooling loops with confidence. The Danfoss Hansen® ML4MQBS37MBS MQDB Series socket seals flat-face on both halves so cold plates and manifolds connect and disconnect without spills or air in the loop.
Danfoss Straight Blind-Mate Coupling Socket, MQDB Series, Socket Fitting, Connection Size 1: 1/4 in, Connection Type 1: Quick Disconnect, Connection Size 2: 3/8 in, Connection Type 2: Male BSPP, Connection Type: Quick-Disconnect|Male BSPP, Stainless Steel, Material Construction: 304 Stainless Steel, G 3/8-19 Thread, 0.75 in Hex, 100 psi Maximum Operating Pressure, 50 to 149 deg F Operating Temperature, Additional Information: EPDM Seal, 2-Way Valve, Blind-Mate Latch, 1.8 gpm Flow Rate. The Danfoss Hansen® ML4MQBS37MBS is a 1/4 in (MQD04, 6.4 mm nominal flow diameter) MQDB blind-mate quick disconnect socket in 304 stainless steel with a G 3/8 male BSPP (-6) terminal end. The MQDB blind-mate series is built to NVIDIA Quick Disconnect (MQD and MQDB) Specification 3.2 for liquid-cooled servers: the socket is panel- or manifold-mounted and mates automatically with the floating-body MQDB plug as the tray or module slides home, with no hand access needed. Flat-face double shut-off valves limit fluid loss to 0.025 cc and air inclusion to 0.05 cc per cycle. Rated flow 1.8 gpm, 100 psi maximum working pressure, 300 psi minimum burst, 50 to 149 deg F operating range. Peroxide-cured EPDM seals (IEC 62368-1 G.15.2.3) for single-phase water/glycol coolant. 0.75 in hex, 1.23 in L. Sold each.
| Additional Information | : | EPDM Seal, 2-Way Valve, Blind-Mate Latch, 1.8 gpm Flow Rate |
| Connection Size 1 | : | 1/4 in |
| Connection Size 2 | : | 3/8 in |
| Connection Type | : | Quick-Disconnect|Male BSPP |
| Connection Type 1 | : | Quick Disconnect |
| Connection Type 2 | : | Male BSPP |
| Fitting Type | : | Socket |
| Hex Size | : | 0.75 in |
| Material | : | Stainless Steel |
| Material Construction | : | 304 Stainless Steel |
| Maximum Operating Pressure | : | 100 psi |
| Operating Temperature | : | 50 to 149 deg F |
| Series | : | MQDB Series |
| Thread Size | : | G 3/8-19 |
