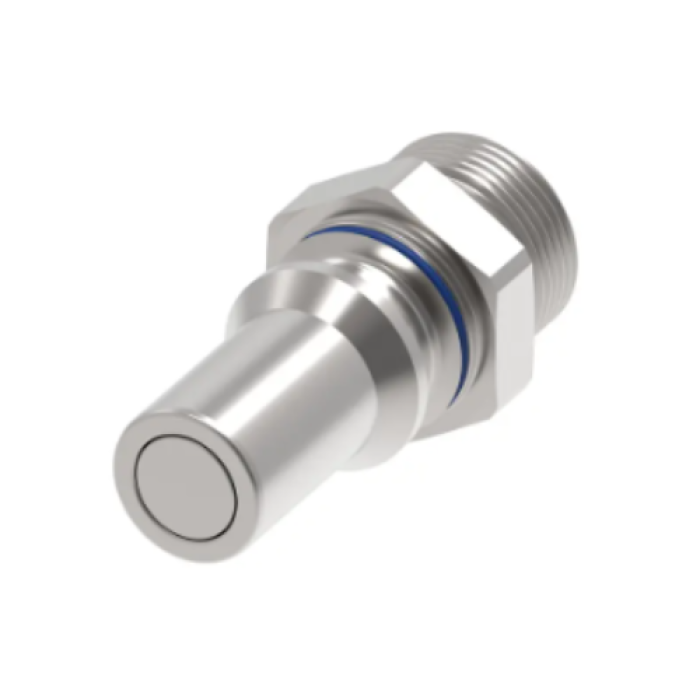

Danfoss ML8UQP87ORMBLS11

Hot-swap cooling loops with confidence. The Danfoss Hansen® ML8UQP87ORMBLS11 UQD Series plug seals flat-face on both halves so cold plates and manifolds connect and disconnect without spills or air in the loop.

Danfoss Straight Universal Coupling Plug, UQD Series, Plug Fitting, Connection Size 1: 1/2 in, Connection Type 1: Quick Disconnect, Connection Size 2: 7/8 in, Connection Type 2: Male ORB, Connection Type: Quick-Disconnect|Male ORB, Stainless Steel, Material Construction: 304 Stainless Steel, 7/8-14 Thread, 1.06 in Hex, 100 psi Maximum Operating Pressure, -40 to 302 deg F Operating Temperature, Additional Information: EPDM Seal, 2-Way Valve, Push-to-Connect Latch, 4.7 gpm Flow Rate, OCP UQD08 V2 (SS304), Color: Blue. The Danfoss Hansen® ML8UQP87ORMBLS11 is a 1/2 in (UQD08) Universal Quick Disconnect plug - the OCP UQD08 V2 version in 304 stainless steel with a 7/8-14 UNF male O-ring boss (SAE -10, ISO 11926-3) terminal end and blue color-coded O-ring for supply line identification. Built to the Open Compute Project UQD specification, it mates with any OCP-compliant UQD08 socket from any manufacturer. Flat-face, double shut-off valving closes both halves on disconnect with no more than 0.03 cc fluid loss and 0.029 cc air inclusion, so cold plates and manifolds can be hot-swapped without draining or purging. Rated flow 4.7 gpm (Cv 5.32) exceeds the OCP minimum by 25% or more, cutting pump energy. Peroxide-cured EPDM-P seals (IEC 62368-1 G.15.2.3 certified) are rated -40 to 302 deg F and suit water, water/glycol and most dielectric coolants; 100 psi maximum working pressure, 300 psi minimum burst. 1.06 in hex, 1.69 in L x 1.33 in W. Push-to-connect latch, straight body. Sold each.

Additional Information	:	EPDM Seal, 2-Way Valve, Push-to-Connect Latch, 4.7 gpm Flow Rate, OCP UQD08 V2 (SS304)
Connection Size 1	:	1/2 in
Connection Size 2	:	7/8 in
Connection Type	:	Quick-Disconnect|Male ORB
Connection Type 1	:	Quick Disconnect
Connection Type 2	:	Male ORB
Fitting Type	:	Plug
Hex Size	:	1.06 in
Material	:	Stainless Steel
Material Construction	:	304 Stainless Steel
Maximum Operating Pressure	:	100 psi
Operating Temperature	:	-40 to 302 deg F
Series	:	UQD Series
Thread Size	:	7/8-14

Designed per OCP (Open Compute Project) UQD specification; push-to-connect design; high flow and no spillage; double shut off - flat face valves; exceeds OCP flow ratings by at least 25%; best in class force to connect; standard seal material EPDM-P (peroxide cured), certified to IEC 62368-1 G.15.2.3; color coded (red/blue) sleeves on socket and O-rings on plug; QR code identification; wide range of terminal ends: ORB, BSPP on plug and push-on hose on socket
