Boston® H036320BK-100 H036320BK-100

Boston® H036320BK-100

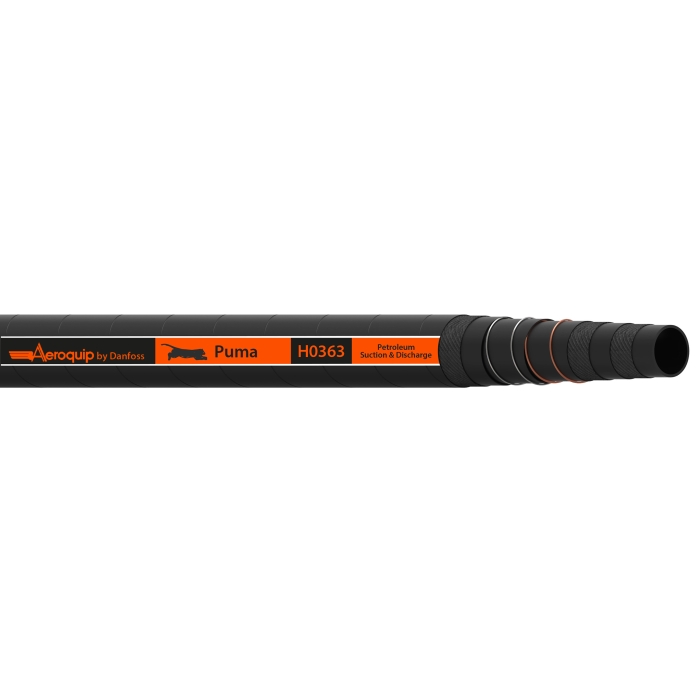

Danfoss PUMA™ H063 Black Vinyl Nitrile Oil and Petroleum Suction and Discharge Hose, 1-1/4 in, 1 ft L, 150 psi

pin-int

Danfoss PUMA™ Oil and Petroleum Suction and Discharge Hose, Series: H063, Nominal Size: 1-1/4 in, Dash Size: 20, 1.77 in OD, 1-1/4 in ID, 1 ft Length, 150 psi, Material Construction: Vinyl Nitrile, Vinyl Nitrile Cover, Construction: 2-Ply Fiber with Dual Helical Wires and an Anti-Static Copper Wire, Black, 7.48 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 180 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      7.48 in
Color      :      Black
Construction      :      2-Ply Fiber with Dual Helical Wires and an Anti-Static Copper Wire
Cover Material      :      Vinyl Nitrile
Dash Size      :      20
Industry Category      :      Petroleum Hoses
Inside Diameter      :      1-1/4 in
Length      :      100 ft
Material      :      Nitrile
Material Construction      :      Vinyl Nitrile
Nominal Size      :      1-1/4 in
Outside Diameter      :      1.77 in
Pressure Rating      :      150 psi
Product Type      :      Suction and Discharge Hose
Resistance Properties      :      Abrasion
Series      :      H063
Temperature High      :      180 deg F
Temperature Low      :      -40 deg F
  • NBR tube and cover
  • 4:1 safety factor
  • Biodiesel compatible
  • 50% aromatic content-resistant

Applications: For suction and discharge of petroleum products in tank truck, paper/pulp industry, oil and gas exploration, ship building, batch plants

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Eaton_H036316BK-100_CAT.pdf
