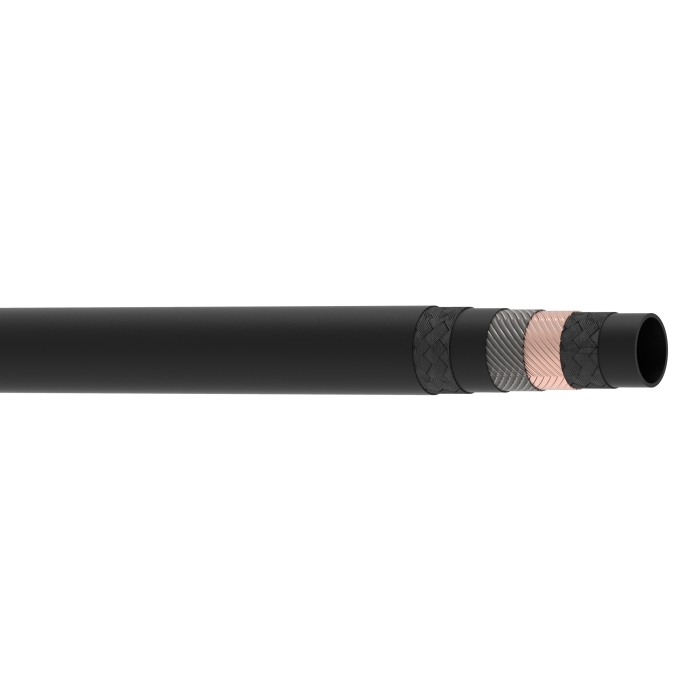

Danfoss Winner® WH004 Black Nitrile Hydraulic Suction Hose
The Winner® WH004 Hydraulic Suction Hose is engineered for efficient fluid transfer in various industrial applications. Its oil-resistant NBR tube, reinforced with textile layers and helical anti-static wire, ensures durability and flexibility. The abrasion-resistant synthetic rubber cover withstands harsh environments, while the hose maintains performance across a temperature range of -40°F to 212°F. Compliant with SAE 100R4 standards, it's suitable for suction applications involving hydraulics, crude fuel, lubricating oils, gasoline, air, water, and chemical transfer.
-
ARGPN: WH004-48-100
-
-
Nominal Size:
-
Nominal Size:
Winner® Hydraulic Suction Hose, Series: WH004, Nominal Size: 3 in, Dash Size: 48, 3.52 in OD, 3 in ID, 0.02 in Thick Wall, 1 ft Length, 60 psi, Material Construction: NBR, Synthetic Rubber Cover, Construction: Textile with Helical and Anti-Static Wire, Black, 7.09 in Bend Radius, Resistance Properties: Abrasion, Oil, -40 deg F Low, 212 deg F High
| Attribute Type Configurator | : | Parent |
| Bend Radius | : | 7.09 in |
| Color | : | Black |
| Construction | : | Textile with Helical and Anti-Static Wire |
| Cover Material | : | Synthetic Rubber |
| Dash Size | : | 48 |
| Inside Diameter | : | 3 in |
| Length | : | 1 ft |
| Material | : | Nitrile |
| Material Construction | : | NBR |
| Nominal Size | : | 3 in |
| Outside Diameter | : | 3.52 in |
| Pressure Rating | : | 60 psi |
| Product Type | : | Hydraulic Suction Hose |
| Resistance Properties | : | Abrasion, Oil |
| Series | : | WH004 |
| Temperature High | : | 212 deg F |
| Temperature Low | : | -40 deg F |
| Wall Thickness | : | 0.02 in |
Applications: For use in suction applications for hydraulics, crude fuel, lubricating oils, gasoline, air, water and chemical transfer
