Dixon® 100-A-PM 100-A-PM

Dixon® 100-A-PM

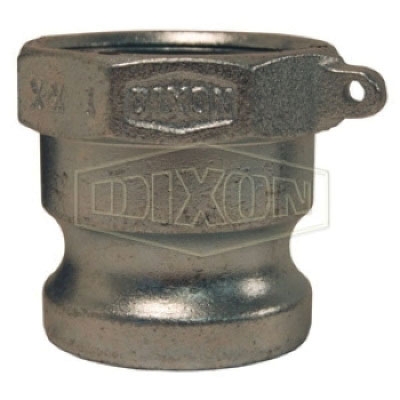

Dixon® 100-A-PM Plated Malleable Iron Cam and Groove Adapter, 1 in Male Type A x 1 in FNPT

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: 100-A-PM
  • MPN: 100-A-PM
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Cam and Groove Adapter, Connection Type 1: Type A, Gender 1: Male, Connection Size 1: 1 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, Hex Size: 1-1/2 in, 250 psi, Material Construction: Malleable Iron, Finish: Plated, Dimensions: 1-7/16 in Dia x 1-31/32 in L

California residents see Prop 65 WARNINGS

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      Type A
Connection Type 2      :      NPT
Dimensions      :      1-7/16 in Dia x 1-31/32 in L
Finish      :      Plated
Gender 1      :      Male
Gender 2      :      Female
Hex Size      :      1-1/2 in
Material      :      Malleable Iron
Material Construction      :      Malleable Iron
Pressure Rating      :      250 psi
Shape      :      Adapter
Thread Size 2      :      1-11-1/2
Precision machined to rigid tolerancesProduced to interchange with all product produced to commercial item description A-A-59326DSafety Notes: Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating is based on the seal of the mating part. Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon®.Applications: For use with liquids
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_100APM_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_100APM_SS.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_100APM_TD.pdf
