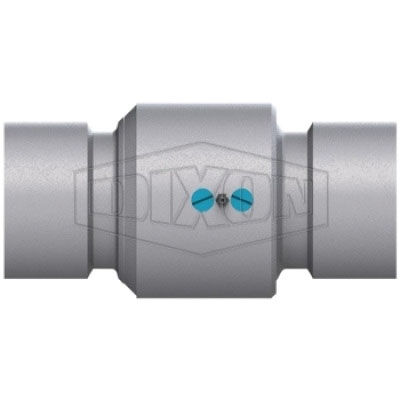

Dixon® 320FXFMI00000 Malleable Iron Single Plane Style 20 Swivel Joint, 3 in FNPT

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: 320FXFMI00000
  • MPN: 320FXFMI00000
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Single Plane Style 20 Swivel Joint, Connection Type 1: NPT, Gender 1: Female, Connection Size 1: 3 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 3 in, Material Construction: Malleable Iron

California residents see Prop 65 WARNINGS

Connection Size 1      :      3 in
Connection Size 2      :      3 in
Connection Type 1      :      NPT
Connection Type 2      :      NPT
Gender 1      :      Female
Gender 2      :      Female
Material      :      Malleable Iron
Material Construction      :      Malleable Iron
Shape      :      Swivel Joint
O-ring pressure seal ensures a leak-proof seal and smooth rotation with lower torqueFull 360 deg rotational movementWide spacing between dual ball bearing raceways ensures greater load bearing capacityPrecision-machined design ensures alignment and years of trouble-free serviceHydrostatic testing is performed on all swivels before shipmentO-ring dust seal protects the ball races and seals chamber from outside elementsCarbon steel ball bearingsBuna-N pressure sealStandard greaseApplications: Distilling, farm irrigation and fertilizing, food and beverage process equipment, mining, paint, petrochemical, petroleum, refining, wastewater treatment plantsSafety Notes: The swivel should be packed such that the surfaces coming in contact with the fluid being handled are compatible with that fluid.In case of the use of the swivel in submerged service, this would include the dust seals and ball bearings.We always recommend the use of the stainless steel ball bearings when building a swivel for submerged service, since should the standard carbon steel ball bearings rust together, they make it possible to dissemble the swivel and may affect operation.Lubrication should be performed periodically, depending on service and operating conditions.Twice yearly is normally sufficient.
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60NAB3_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_220FXFAL00000_SS.pdf
